Wire Stripper
IDEAL StripMaster
 TL-STR-IDEAL-xxx


Cable Type Complete
Tool		 Blade
Only		 Frame
Only
Belden Media Twist Cable
Belden Media Twist Cable 45-274 --- ---
Coaxial StripMaster® Wire Stripper
RG-58 45-264 LB-742 ---
RG-59 45-265 LB-743 ---
RG-6 45-262 LB-740 ---
RG-6 Quad 45-282 LA-3953 ---
RG-62 45-266 LB-744 ---
Flat Blade Set for 24 AWG Multi-Conductor
24 AWG Multi-Conductor 45-891 LB-1152 L-5620
Paired Conductor
Flat Telephone Cable (.60 in. or 1.52mm) 45-270 LB-1155 ---
Belden® MediaTwist® UTP Cable 45-274 --- ---
DreamLAN™ 2001 UTP Cable with CMR (rise) and Plenum Blades 45-275 --- ---
DreamLAN™ 5 UTP Cable with CMR (rise) and Plenum Blades 45-276 --- ----
DreamLAN™ 2001 CMR (rise) Blades --- LA-4014 ---
DreamLAN™ 2001 Plenum Blades --- LA-4015 ---
DreamLAN™ 5 CMR (rise) Blades --- LA-4017 ---
DreamLAN™ 5 Plenum Blades --- LA-4016 ---

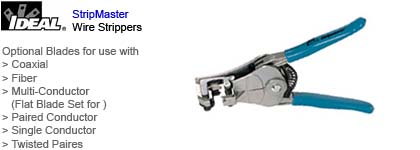

Wire Stripper StripMaster®
AWG: 8, 10, 12 45-090 L-4419 L-5620
AWG:     10, 12, 14, 16, 18 45-091 L-4420 L-5620
AWG:     10, 12, 14, 16, 18, 20, 22 45-092 L-4421 L-5620
AWG:                 14, 16, 18, 20, 22 45-093 L-4422 L-5620
AWG:                       16, 18, 20, 22, 24, 26 45-097 L-4994 L-5620
AWG:                                   20, 22, 24, 26, 28, 30 45-098 L-5361 L-5620
AWG: 8, 10,             16, 18 45-099 L-8763 L-5620
Wire Stripper StripMaster® Lite
AWG:                       16, 18, 20, 22 45-671 LB-1001 LB-1421
AWG:                                               24, 26, 28, 30 45-672 LB-1002 LB-1421
AWG:           12, 14, 16, 18 (all Stranded) 45-673 LB-1003 LB-1421
AWG:           12, 14, 16, 18 (12 & 14 solid, 16 & 18 stranded ) 45-674 LB-1004 LB-1421
AWG:                       16, 18, 20, 22 45-675 LB-1005 LB-1421

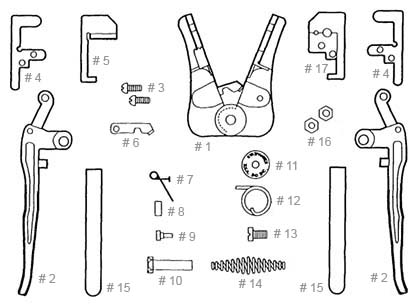

Stripmaster® Repair Parts List
for item 45-089, -090, -091, -092, -093, -095, -097, -098, -099

Item
# Reqd
Description
Part No.
1
1
 Jaw Sub-Assembly*
LB-1023
2
2
 Handle Sub-Assembly
I-6757 RP
3
2
 Gripper Screw (#5-40 x 13/32 w/lockwasher)
355.002
4
2
 Retaining Plate, for blade and gripper
L-9040
5
1
 Gripper, moving
K-1953
6
1
 Latch
L-8906
7
1
 Latch Spring
L-4388
8
1
 Latch Pin
281.082
9
1
 Latch Stud
L-8973
10
1
 Pivot Stud
LB-909
11
1
 Pivot Spring Cover
L-5093
12
1
 Pivot Spring
L-5092
13
1
 Pivot Stud Screw (#8-32 x 2/8, Nylok)
358.015
14
1
 Handle Spring
L-4387
15
2
 Handle Sleeve (Blue)
LA-4058
16
2
 Blade Nut (#5-40, Keps Nut)
374.022
N/A
-
 Complete Frame, less blades
L-5620
N/A
-
 Accessory Wire Stop, adjustable
L-5270
17
1 pr
 Blade Set (see table)

Wire Size Stripping Hole Diameter
Tool #
8
10
12
14
16
18
20
22
24
26
28
30
Blade #
45-090
0.145
0.141
0.106

L-4419
45-091

0.144
0.105
0.085
0.073
0.073

L-4420
45-092

0.144
0.113
0.090
0.072
0.061
0.048
0.048

L-4421
45-093

0.090
0.072
0.061
0.039
0.039

L-4422
45-095
 SP-SPT (I.e. LAMP CORD)
L-4452
45-097

0.072
0.061
0.048
0.039

L-4994
45-098

0.048
0.039
0.032
0.026
0.021
0.016
L-5361
45-099
0.198
0.167

0.062
0.055

L-8763
45-089
 European Flat Parallel Cable
L-8762

Coax Stripmaster® Wire Strippers
Tool # Coax Cable Type (RGU) Blade #
45-262
 RG-6 LB-740
45-264
 RG-58 LB-742
45-265
 RG-59 LB-743
45-266
 RG-62 LB-744
*Jaw Sub-Assembly includes left and right jaws with items 6 through 10.
