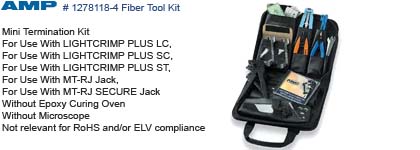

Fiber Optic Termination Tool Kit
AMP # 1278118-4
Termination / Professional Installer Kits and Accessories
TL-KIT-AMP-xxx

Links:

• AMP 1278118 Drawing

Product Highlights:

• Mini Termination Kit

• For Use With LIGHTCRIMP PLUS LC,
  For Use With LIGHTCRIMP PLUS SC,
  For Use With LIGHTCRIMP PLUS ST,
  For Use With MT-RJ Jack,
  For Use With MT-RJ SECURE Jack

• Without Epoxy Curing Oven

• Without Microscope

• Not relevant for RoHS and/or ELV compliance

Options:

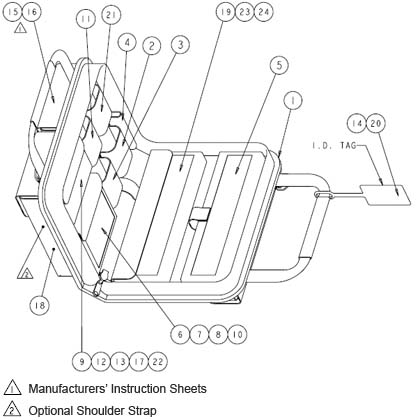

Part Number & Description			1278118
			-1	-2	-3	-4	-5
1	1278540-1	Premium Softcase	1	1	1	1	1
2	1754708-1	Fiber Strip Tool, Combination	1	1	1	1	1
3	1278637-1	Kevlar Shears	1	1	1	1	1
4	1278422-1	Open End Wrench, 1/4 inch	2	2	2	2	2
5	2064603-1	Handtool, LightCrimp Plus / LC / SC / Splice	1	-	-	1	1
6	492622-1	Dieset, LightCrimp Plus / ST	1	-	-	1	1
7	492703-1	Cable Holder, LightCrimp Plus / ST	1	-	-	1	1
8	2064540-1	Cable Holder, LightCrimp Plus / LC / SC	1	-	-	1	1
9	501857-2	Alcohol Wipes	15	-	-	14	14
10	501198-1	Optimate Cable Stripper	1	-	-	1	1
11	492109-2	Micro-Strip Tool MT-RJ (0.008 inch)	1	-	-	1	1
12	1278576-1	Actuation Key, MT-RJ	2	-	-	2	2
13	1278598-1	Strip Template, MT-RJ	1	-	-	1	1
14	1374331-1	Label, Termination Kit	1	-	-	1	-
15	1374503-1	CD-ROM, Termination Training	1	1	1	1	1
16	2064710-1	Fiber Optics Cleaning & Inspection Guide	1	1	1	1	1
17	1457999-1	Ball End Hex Key (5)	1	-	-	1	1
18	1871696-1	Fiber Cleaver, Slide Cutter	-	-	-	1	1
19	1754767-1	200x Microscope Kit	-	-	-	-	1
20	1374331-2	Label, Termination Kit	-	-	-	-	1
21	1553661-1	Slitter Tool, 2mm & 3mm	-	-	-	1	1
22	1278625-1	Cable Clamp	-	-	-	1	1
23	1754768-1	Microscope Adapter, MT-RJ	-	-	-	-	1
24	1754765-1	Microscope Adapter, 1.25mm	-	-	-	-	1
