• Patented jack termination tool allows you to terminate jacks 8 times faster.
• Cuts installation time - easy to use handle, seats and cuts all wires at once, saving you up to 1 minute installation time per jack!
• High quality, consistent terminations - no more compromised connections and wasted jacks
• Simple, one-handed operation with an ergonomically designed handle reduces hand fatigue
• Unique design easily accommodates close-to-wall installation
• Replaceable blade head for use with multiple jack types

Overview:

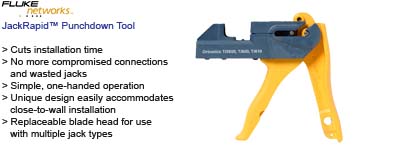

JackRapid™ is a patented jack termination tool that saves time and increases accuracy by seating and terminating all wires at once with a simple squeeze of the handle. JackRapid allows you to terminate jacks eight times faster than traditional impact tools - with accuracy that's unmatched.

The patented jack termination tool seats and terminates all wires simultaneously. The built-in blade cuts off the excess wire after it is seated in the connector, eliminating the need for a secondary trim step.

Simple, one-handed operation, with an ergonomically designed handle, reduces hand fatigue.  With JackRapid, you’ll never punch into the palm of your hand or through drywall again.

Features:

• Terminate jacks 8 times faster
• Strip cable jacket.
• Determine wiring scheme. Dress all 4 pairs (8 wires).
• Insert jack in JackRapid front first with IDC slots facing blades of JackRapid.
• Ensure jack is completely and securely inserted in jack holder bed with IDC slots facing the blades.
• Pull trigger completely and remove excess wire prior to releasing trigger.
• Wires will be seated and cut for a solid termination.
• Release handle and remove jack from JackRapid tool. Visually verify proper termination.

Replaceable blade heads:

JackRapid blade heads are specific to certain jack types--check the list below to see if JackRapid supports the jacks you use, and if not, look for a new JackRapid version in the future!


Description	JackRapid-Model Number
JackRapid Termination Tool Leviton Jacks Supports jack models: 41106, 41108 Cat3/5, 5G108 Cat5e	JR-LEV-1
JackRapid Blade Head Leviton Jacks Supports jack models: 41106, 41108 Cat3/5, 5G108 Cat5e	JR-LEV-1-H
JackRapid Termination Tool Leviton Jacks Supports jack models: 5G110 Cat 5e, 61110 Cat 6	JR-LEV-2
JackRapid Blade Head Leviton Jacks Supports jack models: 5G110 Cat 5e, 61110 Cat 6	JR-LEV-2-H
JackRapid Termination Tool SYSTIMAX Jacks Supports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e	JR-SYS-UNI-1
JackRapid Blade Head SYSTIMAX Jacks Supports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e	JR-SYS-UNI-1-H
JackRapid Termination Tool SYSTIMAX Jacks Supports jack models: MGS400 Cat 6, MGS500 Cat 6	JR-SYS-2
JackRapid Blade Head SYSTIMAX Jacks Supports jack models: MGS400 Cat 6, MGS500 Cat 6	JR-SYS-2-H
JackRapid Termination Tool Uniprise Jacks Supports jack models: UNJ300 Cat 3, UNJ500 Cat 5e, UNJ600 Cat 6	JR-SYS-UNI-1
JackRapid Blade Head Uniprise Jacks Supports jack models: UNJ300 Cat 3, UNJ500 Cat 5e, UNJ600 Cat 6	JR-SYS-UNI-H
JackRapid Termination Tool ORTRONICS Jacks Supports jack models: TJ5E00, TJ600, TJ610	JR-ORT-2
JackRapid Blade Head ORTRONICS Jacks Supports jack models: TJ5E00, TJ600, TJ610	JR-ORT-2-H
JackRapid Termination Tool ADC Jacks Supports jack models: KM8, CopperTen	JR-ADC-2
JackRapid Blade Head ADC Jacks Supports jack models: C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45	JR-ADC-2-H
JackRapid Termination Tool Panduit Jacks Supports jack models: NK688M and NKP5E88M	JR-PAN-2
JackRapid Blade Head Panduit Jacks Supports jack models: NK688M and NKP5E88M	JR-PAN-2-H

Models:

Model Number/Name	Description
JR-PAN-2	JACKRAPID TERMINATION TOOL (for Panduit NK688M, NKP5E88M)
JR-ADC-2	JR-ADC-2, JACKRAPID TERMINATION TOOL (FOR ADC C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45)
JR-ORT-2	JR-ORT-2,JACKRAPID TERMINATION TOOL (FOR ORTRONICS TJ5E00, TJ600, TJ610)
JR-SYS-2	JR-SYS-2,JACKRAPID TERMINATION TOOL(FOR SYSTIMAX MGS400, MGS500, MFP420, MFP520)
JR-LEV-2	JR-LEV-2,JACKRAPID TERMINATION TOOL (FOR LEVITON 61110, 5G110, 6110G)
JR-SYS-UNI-1	JR-SYS-UNI-1,JACKRAPID TERMINATION TOOL (MPS100E,C5,M1BH & UNJ600/500/300)
JR-LEV-1	JR-LEV-1,JACKRAPID TERMINATION TOOL (FOR LEVITON 41106, 41108, 5G108)

Accessories:

Model Number/Name	Description
JR-PAN-2-H	JACKRAPID REPLACEMENT BLADE HEAD(for Panduit NK688M, NKP5E88M)
JR-ERGOHANDLE	JR-ERGOHANDLE,JACKRAPID ERGONOMIC HANDLE
JR-ADC-2-H	JR-ADC-2-H, JACKRAPID REPLACEMENT BLADE HEAD (FOR ADC C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45)
JR-ORT-2-H	JR-ORT-2-H,JACKRAPID REPLACEMENT BLADE HEAD (FOR ORTRONICS TJ5E00,TJ600, TJ610)
JR-SYS-2-H	JR-SYS-2-H,JACKRAPID REPLACEMENT BLADE HEAD(FOR SYSTIMAX MGS400,MGS500, MFP420, MFP520)
JR-LEV-2-H	JR-LEV-2-H,JACKRAPID REPLACEMENT BLADE HEAD (FOR LEVITON 61110, 5G110, 6110G)
JR-SYS-UNI-1-H	JR-SYS-UNI-1-H,JACKRAPID REPLACEMENT BLADE HEAD (MPS100E,C5,M1BH&UNJ600/500/300)
JR-LEV-1-H	JR-LEV-1-H,JACKRAPID REPLACMENT BLADE HEAD (FOR LEVITON 41106, 41108, 5G108)
