790163 Pro-Crimper III Hand Tool and Die
for EMT Modular Plug Connector
TL-CP-RJ45-AMP-790163

 Click here for Crimp Tool 790163 Instruction Sheet
Click here for AMP / Tyco Modular Plugs & Tools
Click here for Cat.6 EMT Shielded Plug Assembly

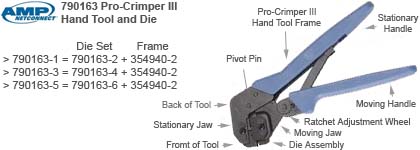

Part Numbers:

Frame &
Die		 = Frame + Die Set for EMT & VHP Plug Conductor Cable
Wire AWG Insulation O.D. Strip Length Jacket O.D.
790163-1 = 354940-2 + 790163-2 336330-x Cat.6 Shielded Stranded 24~26 0.80~1.00 mm 25+/-5 mm 5.0~6.0 mm
1375202-x Cat.6 Shielded-Unshielded

Stranded

 23~24 0.80~1.00 mm 25+/-5 mm 5.0~6.0 mm
1375204-x Cat.6 Shielded-Unshielded Solid 23~24 0.80~1.00 mm 25+/-5 mm 5.0~6.0 mm
790163-3 = 354940-2 + 790163-4 336439-x Cat.6 OM* Shielded Stranded 24~26 0.80~1.00 mm 25+/-5 mm 5.0~6.0 mm
790163-5 = 354940-2 + 790163-6 336462-x

Cat.6 TC*

 Shielded Stranded 24~26 0.80~1.00 mm 25+/-5 mm 6.0~7.0 mm
1479184-x

Cat.6 TC*

 Shielded-Unshielded Stranded 23~24 0.80~1.00 mm 25+/-5 mm 6.0~7.0 mm
1479185-x

Cat.6 TC*

Shielded-Unshielded

 Solid 23~24 0.80~1.00 mm 25+/-5 mm 6.0~7.0 mm

Note:
> EMT: Electro Magnetic Technology
> OM* - Overmoldable
> TC* - Thick Cable

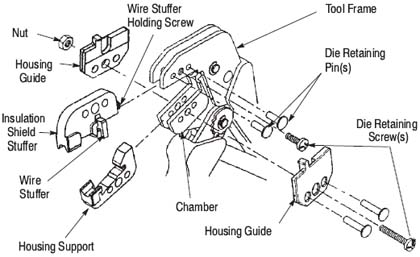

Replacement Parts:
> Customer-replaceable parts are available separately.
> PRO–CRIMPER III Repair Kit 679221-1 includes a replacement nut and a variety of pins, rings, screws, and springs.
> To order:
   call 1–800–526–5142, or
   fax order to 717-986-7605, or
   write to:
   Customer Service (38-35)
   TYCO Electronics Corporation
   P.O. BOX 3608
   Harrisburg, PA 17105–3608
