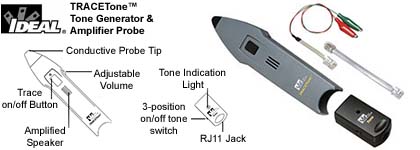

Tone Generator & Amplifier Probe
IDEAL 62-140 TRACETone™
Features
> Tone Generator stores in bottom of Amplified Probe to make
carrying easier
> Two selectable tone styles with easy to read LED power-on indicator
> Built-in volume control to meet personal preference
> Turn-on the Amplified Probe by contact and automatic power off mode
when Tone Generator is in the stowed mode—no dead battery
> Accessories to isolate tracing – RJ11 Patchcord and Alligator Clip
Package Content
> TRACETone™ Tone Generator and Amplified Probe test set
> Alligator Clip with RJ11 interface
> Satin RJ11 patchcord
To Trace a Tone
> Connect the Tone Generator to the RJ11 Alligator Clip, then place the
Alligator Clip on the cable to be traced
> Select one of the tones of choice, the green LED will indicate the
power-on mode
> Press and hold the black button on the Amplified Probe to turn on the
probe.
> Adjust volume control to a comfortable level. If the signal is very
loud when near the cable, the volume may need to be reduced to keep from
overloading the TRACETone™. When overloaded, small increases or
decreases in the signal at the tip cannot be heard.
> Hold the tip of the TRACETone™ near cable to be identified. The signal
will be loudest on the wire or cable the generator is attached to.
Separating the wires or cables may help in isolating the correct cable.
Battery Replacement
> Remove the screw at the back of the Tone Generator or the Amplified
Probe with a #1 Phillipshead screwdriver and remove battery door.
> Remove old cell batteries, rapping case against the palm of the hand
will dislodge batteries.
> Install 4 new LR44 cells being careful to orient plus end of battery
with plus symbol on case.
> Replace battery door and reinsert the screw. Do not over tighten.
Product specification
> Power Requirements: 4 x LR44 button cells (6 volts)
> Battery life: Generator: 100hrs, Amplified probe: 12hrs
> Voltage w/o damage: 250 volts peak DC or 175 volts RMS AC
> Tone frequencies (+/-5%): 995Hz and 845Hz alternating tones
> Tone voltage: 12 volts p-p no load, new battery
> Tone power: 8dbm into 600 ohms, new battery |
