Tone Generator & Amplifier Probe

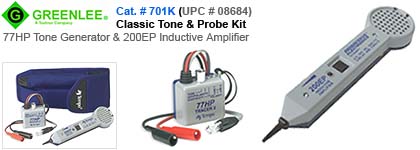

GREENLEE # 701K Classic Tone & Probe Kit
77HP High Power Generator & 200EP Inductive Amplifier
with Rugged, Woven Polyester Carrying Case
TSTR-TONE-GL-701K

Name: Classic Tone and Probe Kit
Cat #: 701K
UPC #: 08684

Description:
> Used to identify single conductors or cables within a bundle, at a cross-connect point or at remote ends.
> Kit includes the 77HP High Power Tone Generator and the 200EP Inductive Amplifier in a rugged, woven polyester carrying case.

77HP Tone Generator
> UPC #: 08687
> Spec: Selectable Warble Tone Continuity Testing Polarity Testing Talk Battery Supply Two-line Modular Test Lead (RJ-11) Three-color LED (identifies AC ring voltage) Weather-resistant Design Battery Operated (9V not included)
> Description: Permits technicians to identify the conductor within a bundle, at a cross-connect point or at the remote end. Can be used on twisted pair wiring (telecom, datacom, etc.), single conductors, coaxial cables, de-energized AC wiring and most other wiring.

200EP Inductive Amplifier
> UPC #: 08671
> Spec: Powerful 2" Speaker, One-button Operation, Adjustable Volume Control, LED for Visual Signal Strength Indication, Recessed Tabs for Telephone Test or Headset Connection, Battery Operated (9V not included)
> Description:
Used in conjunction with any tone generator, Inductive Amplifiers permit wire and cable identification without having to make direct metallic contact with the conductor. All models feature powerful speaker for noisy environments, recessed on/off button control and high gain for accurate wire identification in congested cable bundles and equipment rooms. The 200EP also includes adjustable volume control for precise identification, an LED for visual signal strength indication and recessed teleph.
