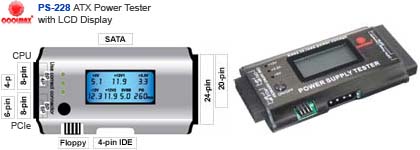

• Easy to check ATX power supply
• Aluminum case
• Accurate voltage indicator +/- 0.1V (+12V1/+5V/+3.3V/5VSB/+12V2/-12V)
• ATX P.G. value display
• Lower or higher P.G. values alarm
• ATX output connectors check
• Lower voltage detected alarm
• Over voltage alarm
• No voltage detected alarm

Manual:

• Plug-in your ATX power 24 pin and plug-in (P4/P6/P8) into the tester.
• Turn on your ATX power supply
• LCD shows each voltage and P.G. value on the screen automatic and you can hear 2 beep sounds.
• ATX power output connector checking one by one.
• If power output is working, the LED will light on.
• If power output failed, the LED will not light on.
• Plug-in (HDD/Floppy) connector and check LED light (+12V1/+5V)
• Plug-in SATA connector and check LED light (+12V1/+5V+3.3V)
• Remove the connector after your checking
• Do not plug-in 2 connectors into the tester at the same time
• (Not include 24 pin connector)
• Abnormal voltage detected will not display on the screen.
• No voltage detect, “LL” will display on the screen.
• When detected Voltage is lower than Min. Value, “LL” will display on the screen.
• When detected Voltage is higher than Max. Value, “HH” will display on the screen.
• When detected voltage is lower than table value (A), will alarm.
• When detected voltage is higher than table value (B), will alarm.
• P.G. value detected lower 100ms or higher 900ms, P.G. value is abnormal and alarm.
• When abnormal happened, it will alarm and relative digit blink on the screen.
