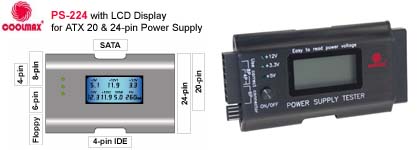

ATX Power Supply Tester CoolMax PS-224 with LCD Display for ATX 20-pin & 24-pin Power Supply TS-PS-ATX24-PS224 The PS-224 power supply tester is a 24 pin tester to help you check the ATX power voltage. Embodied in aluminum with an LCD screen that shows an accurate voltage indicator of +/- 0.1V, the PS-224 is easy to use and simple to understand. There will also be an alarm that tells you when the voltage level is too low, too high or if there is no voltage from your power supply. The PS-224 is simple, accurate, and easy to use Features: The product designs with LCD to show ATX power voltage. Easy to plug with ATX power 24 pin and plug in (P4/P6/P8) to show the voltage on the LCD panel. > Easy to check ATX power supply > Aluminum case > Accurate voltage indicator +/- 0.1V (+12V1/+5V/+3.3V/5VSB/+12V2/-12V) > ATX P.G. value display > Lower or higher P.G. values alarm > ATX output connectors check > Lower voltage detected alarm > Over voltage alarm > No voltage detected alarm Manual: > Plug-in your ATX power 24 pin and plug-in (P4/P6/P8) into the tester. > Turn on your ATX power supply > LCD shows each voltage and P.G. value on the screen automatic and you can hear 2 beep sounds. > ATX power output connector checking one by one. > If power output is working, the LED will light on. > If power output failed, the LED will not light on. > Plug-in (HDD/Floppy) connector and check LED light (+12V1/+5V) > Plug-in SATA connector and check LED light (+12V1/+5V+3.3V) > Remove the connector after your checking > Do not plug-in 2 connectors into the tester at the same time (Not include 24 pin connector) > Abnormal voltage detected will not display on the screen. > No voltage detect, “LL” will display on the screen. > When detected Voltage is lower than Min. Value, “LL” will display on the screen. > When detected Voltage is higher than Max. Value, “HH” will display on the screen. > When detected voltage is lower than table value (A), will alarm. > When detected voltage is higher than table value (B), will alarm. > P.G. value detected lower 100ms or higher 900ms, P.G. value is abnormal and alarm. > When abnormal happened, it will alarm and relative digit blink on the screen. Normal Voltage Range: > ±5% for +5V, +3.3V, +5VSB > ±10% for +12V1, +12V2, -12V
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
