Fiber Optic Light Source (Tester)

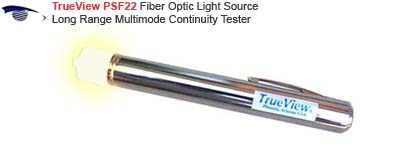

PSF22 Pocket Source (Tester)
Long Range Multimode Continuity Tester
TS-FBL-PSF22

The PSF22 LAN Continuity Tester is perfect for checking spooled fiber, patch cords and point-to-point troubleshooting of cable failures. The PSF22 is designed for multimode short distance applications up to 2000 meters. A non-harmful white light is visible on the other end if link is not damaged.

A powerful krypton light source provides a pre-focused beam for hours of intermittent use. In short distance networks, this tool shows more reliable than lasers for determining the continuity of a cable during inspection.

Features:
> Lightweight pen style design makes it easy to carry or keep in a tool case
> A powerful pre-focused krypton bulb allows visibility in multimode cable up to 2000 meters
> Cuts down inspection time by quickly locating cable faults without use of OTDR equipment

Applications:
Inspection of multimode fiber links:
> Point-to-point LAN network inspection
> Cable reel and patch cord inspection
> Installation walk-down continuity verification

Specifications:

Body
> Press formed, triple chrome plated steel.
> Durable steel ON-OFF switch and chrome plated steel pocket clip.

Head Assembly
> Machined Delrin plastic head assembly with TrueView'w Patent Pending TrueGrip fiber retention system.
> Fits all manufacturer's ST, SC and FC connector assemblies with a tight hold. Can also be used for spooled fiber checks on bare fiber.

Light Source
> Krypton 2.33 volt, 0.6 amp pre-focused 2 AA Batteries.
> 2000 meter (over 1 mile) effective range on single or multi-mode fiber.

Dimensions
> 0.62" diameter, 5.42" length
> Pen-Lite Styling

Shipping Weight
> 2 ounces with batteries
> Less than 1 ounce without battery

Operating Temperatures
> -20 to 150° F
> Batteries have a shorter life in colder temperatures.

Ambient Storage Conditions
> Temperature: 40 to 80° F
> Humidity: Do not Submerge
> Body and head assembly are not affected by oxidation based corrosion
