Fiber Light Source / Visual Fault Locator

Fiber Optic Visual Fault Locator

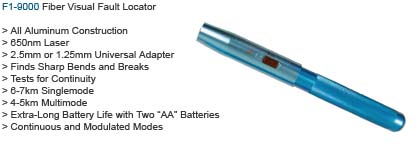

Pocket Visual Optical Fiber Fault Locator
TS-FBL-F1-9000

Features:

All Aluminum Construction
650nm Laser
2.5mm or 1.25mm Universal Adapter
Finds Sharp Bends and Breaks
Tests for Continuity
6-7km Singlemode
4-5km Multimode
Nylon Belt Holster
Extra-Long Battery Life with Two “AA” Batteries
Continuous and Modulated Modes

Description:

This Fiber Optic Pocket Fault Locator is designed to be rugged, compact and lightweight. The unit is 7.1” in length and weighs only 4.5oz. The Fiber Optic Pocket Fault Locator has a 30-hour battery life in continuous mode and 40 hours in modulated mode. The bright 650nm laser in this Pocket Fault Locator ensures fast and easy location of fault points in fiber optic patchcords, patchpanels and enclosures. The Fiber Optic Pocket Fault Locator can also be used to identify fibers in multi-fiber cables. The Fiber Optic Pocket Fault Locator is designed for both singlemode and multimode fiber optic applications. These units are shipped with two “AA” batteries and a belt holster.

Specification:

Wavelength 650nm +/_ 5nm
Fiber-coupled output 0dBm typical, -3.5dBm minimum (singlemode fiber)
Laser Class IIIa (< 5mW)
Approx. Range 6-7km (singlemode), 4-5km (multimode)
Battery (2)AA
Battery Life 30hrs continuous, 40 hrs modulated
Adapter Universal 2.5mm or 1.25mm
Dimensions 7.1” long x 0.860” diameter
Weight (with batteries) 4.5oz
Operating temp -10°C to 50°C
