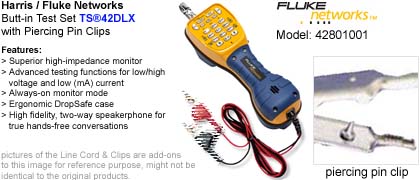

Butt-in Telephone Test Set
Harris Fluke Networks
TS42DLX (TS®40 Series)
TS-42DLX (TS®-40 Series) # 42801-001 (42801001)
with Piercing Pin Clips
TS®40 Series Test Sets (TS®42DLX)
TS42DLX Series Test Sets combine rugged DropSafe™, DataSafe™,
waterproof durability with needed testing capabilities. Their true
two-way speakerphone capability also makes your work easier.
Features:
> Superior high-impedance monitor
> Advanced testing functions for low/high voltage and low (mA) current
> Always-on monitor mode
> Ergonomic DropSafe case
> High fidelity, two-way speakerphone for true hands-free conversations
Built for the demanding professional, the TS40 Series Test Sets (TS42DLX)
combine an ergonomic waterproof design, DropSafe durability and a
standard 3-year warranty for unmatched reliability. The TS40 Series Test
Sets offer speakerphone capability for true hands-free conversations, a
rugged ergonomically designed waterproof case that exceeds American
Military Specification MIL-STD-810E and are DropSafe tested to 20 feet
(6 meters) onto concrete. Designed with superior high-impedance monitor
to protect data lines, the TS40-series offers the best DataSafe
protection in its class. Advanced testing functions for low/high voltage
and low (mA) current detection are displayed in easy-to-read LEDs.
Always-on Monitor Mode simplifies operation and speeds testing; just
clip onto the pair and it is monitoring.
Specifications (TS-42DLX):
Electrical
>
Current Range (Off-Hook):
10 mA to 100 mA
DC Resistance
> Off-Hook: 150 Ω
nominal
> On-Hook: >3 MΩ
AC Impedance
>
Off-Hook: 600 Ω nominal; 300 Hz to 3400 Hz
> On-Hook: >120 kΩ; 300 Hz to 3400 Hz
Rotary Dial Output
> Pulsing Rate: 10
pps ±1 pps
> Break/Make Ratio: 60/40
> Interdigit Interval: >300 ms
> Resistance During Break: >100 kΩ
DTMF Output
>
Tone
Frequency Error: ±1.5 % maximum
> Tone Level: -3 dBm combined (typical)
> High versus Low Tone Difference: 2 dB ± 2 dB
Memory Dialing
>
Memory Capacity: 10 speed dial memories plus one last number redial
> Digit
Capacity: 23 digits per memory
> PBX Pause Duration: User programmable; default of 4 seconds
> Hook Flash Duration: User programmable; default of 600 ms
> Automatic Speaker Shut Off Duration: User programmable; default of 2
minutes
Battery
> 9 V alkaline or lithium battery
Physical
> Measurement: 10 in x 3.75 in x 4.25 in
(254 mm x 96 mm x 107 mm)
> Weight: Less than 1.5 pounds (0.68 kg) with one belt clip
> Water Resistance: Designed to be rain and moisture resistant.
Environmental
> Temperature Range Operating: 29 °F to 140
°F (-34 °C to 60 °C)
> Storage: -40 °F to 150 °F (-40°C to 66 °C)
> Altitude: To 10,000 ft (3,000 m) max
> Drop: Two 20-foot drops and twelve 12-foot drops onto concrete
Notes:
Specifications subject to change without notice. Legal requirements may
exist regarding permission to connect equipment to a Telecom network
operated by a public network operator. www.flukenetworks.com |
