Butt-in Telephone Test Set
Harris Fluke Networks
TS25D Series (TS®25D)
1.
2.
3.
Options:
(not all items are available; subject to
inventory)
1.
TSTR-BUTT-TS25501109 - 25501109 TS25D Test Set with ABN kit (includes pouch and earpiece)
2.
TSTR-BUTT-TS25501009 - 25501009 TS25D Test
Set with ABN
3.
TSTR-BUTT-TS25501004 - 25501004 TS25D Test
Set with 346A plug

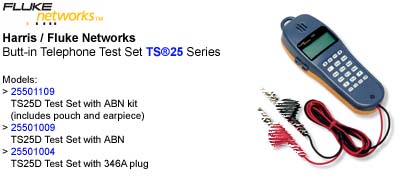

TS®25D Test Set
The TS®25D Test Set with caller ID is user friendly with an oversized
liquid crystal display (LCD) and intuitive, common sense menus.
Features:
> Caller ID and call-waiting caller-ID (on North American phone systems)
> Data lockout and data lockout override
> DSL/POTS filtering technology lets you safely draw dial tone from a
pair that is carrying voice and ADSL without downing the ADSL service
> Built-in analog tone generator for tracing and identifying wires with
a probe
> DTMF digit grabbing capability
> Talk battery to supply power to non-powered (dry) pairs to carry voice
conversation
> Row/column tones for single tone dialing
> High voltage lockout, low voltage lockout
> Continual data detection in monitor mode
> Over voltage and over current protection
> Amplified speaker for hands-free monitoring
> Programmable phonebook stored in non-volatile memory
> Speed dial (10 memories, 23 digits each)
> Selectable flash and pause duration
> Battery level indicator
This feature-rich test set is a necessity for a variety of installs. The
TS25D Test Set features data lockout and lockout override, making you
completely safe in talk or monitor mode. The DSL/POTS filtering
technology allows you to safely draw dial tone without downing DSL. A
built-in analog tone generator simplifies wire identification with a
probe. An amplified speaker makes monitoring the line hands-free, so you
can keep working. The talk battery function provides voltage to carry
voice conversation on non-powered pairs. All in a compact unit with an
oversized robust liquid crystal display (LCD) that makes the intuitive,
common-sense menus
easy to read and use.
Specifications (TS-25D Series):
Electrical
> Return Loss: >14 dB (ref 600 Ω)
DC
Resistance
>
Off-Hook: 150 Ω nominal
> On-Hook: >1 MΩ
AC
Impedance
>
Off-Hook:
600 Ω nominal; 300 Hz to
3400 Hz
> On-Hook: >120 kΩ;
300 Hz to 3400 Hz
Rotary Dial Output
>
Pulsing Rate:
10 pps ±1 pps
> Break/Make Ratio: 60/40
> Interdigit: >300 ms
> Interval Resistance During Break: >100 kΩ
DTMF Output
> Tone Frequency Error: ±1.5 % maximum
> Tone Level: –1 dBm combined (typical)
> High versus Low Tone difference: 2 dB ± 2 dB
Memory Dialing
>
Memory Capacity: 10 speed dial memories plus one last number redial
memory
> Digit Capacity: 23 digits per memory
> Pause Duration: User programmable Default: 4 seconds
> Hook Flash Duration: User programmable Default: 600 ms
> Automatic Speaker Shut Off Duration: User programmable TS25D default:
5 minutes TS25D CO default: 2 minutes
> Battery: 9 V alkaline or lithium battery
Physical
>
Measurement: 7.8 in x 2.7 in x 1.6 in
(20 cm x 6.8 cm x 4 cm)
> Weight: 10 ounces (284 g)
Environmental
> Temperature
Range Operating: 32°F to 122 °F (0 °C to 50 °C)
> Storage: -40 °F to 150 °F (-40 °C to 65 °C)
> Altitude: Up to 10,000 ft (3,000 m)
> Relative Humidity: 5 % to 95 %
> Certifications and Compliance: Conformité Européenne. Conforms to
relevant European Union directive
Notes:
Specifications subject to change without notice. Legal requirements may
exist regarding permission to connect equipment to a Telecom network
operated by a public network operator. www.flukenetworks.com |
