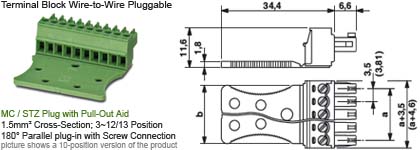

Terminal Blocks Wire-to-Wire Pluggable
MC/STZF Plug with Pull-Out Aid
1.5mm² Cross-Section; 2~12 (3.50 pitch) / 2~13 (3.81 pitch) Position
180° Parallel Plug-in with Screw Connection
TB-PS3.50(or 3.81)C1.5-MGxx (Gxx: Plug with Pull-Out Aid & Number of Position)

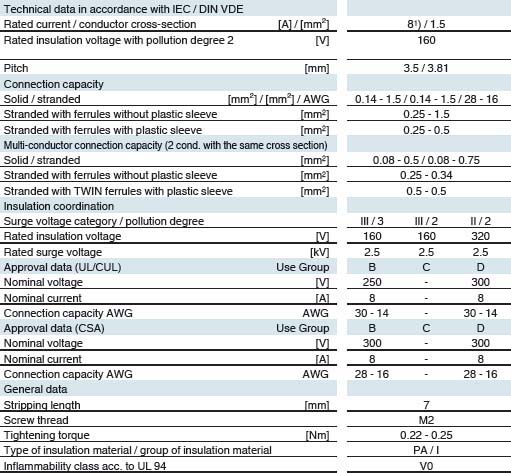

Specifications:


Note 1) Derating curves of further ombination options on request.
