VGA Multiplier ( VGA
Splitter )

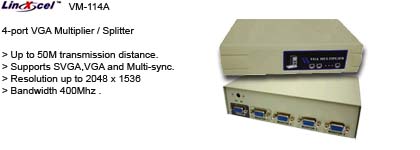

Linxcel VM-114A (4-port)
EX-VGA-1x4-VM114A
Overview:
The VGA multiplier switch . It is display of the one PC to multiple
monitor in the same time . It’s will suitable at airplane, seminars
, as well as educational and company training center , where data in
one PC can be displayed through multiple monitors.
The VGA multiplier comes in several varieties , able to send to 2 ,
4, or 8 separate monitors , and it is able to make daisy chain
(link multiple distribution amplifier s in order to increase the
amount of outputs) up to 200 monitor as well .
Benefits:
-
More space and cost effective.
-
50
m is ideal data transmission distance; or it can take up to 100 m .
-
Supports SVGA, VGA and Multi-sync. Resolution up to 2048 x 1536
bandwidth 400Mhz .
-
Works on any hardware platform with all operating systems.
-
No
driver required.
-
Hook up with additional VGA multipliers to extend the network.
-
Suitable for small or mid-size companies to build highly scalable
and reliable training or conference system
Specification:
|
Model No. |
VM-114A |
|
Upstream Port |
1 x HD15 Female for PC port |
|
Downstream Port |
4
x HD15 Female for Monitor |
|
LED's |
N/A |
|
Port Selection |
N/A |
|
Operation Temperature |
0°~60° |
|
Storage Temperature |
-20°~60° |
|
Power Mode |
DV9V , 500 mA power adapter |
|
Operating System |
Windows98/SE,2000,XP,Vista, Mac OS 9x or Higher
|
|
Unit Weight |
1.4 lbs |
|
Unit Dimensions |
183 x 115 x 47 (mm) |
|
Package |
color gift box |
|
Package Weight |
2.4 lbs |
|
Package Dimensions |
9.6 x 7.5 x 2.9 (in) |
|
Master Carton Quantity |
10 piece |
|
Mater Carton Weight |
24 lbs |
|
Master Carton Dimensions |
15 x 10.3 x 15.7 (in) |
|
Warranty |
1 Years Limited Warranty |
Requirement:
IBM
compatible PC 233 Mhz Pentium and higher with VGA interface card.
Package
Contents:
|
