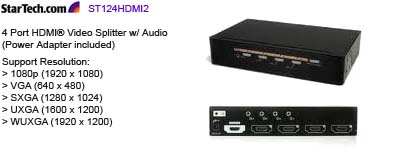

The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality.
Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.
A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.
The StarTech Advantage
- High Speed HDMI® support ensures compatibility with the latest HDMI source devices and displays
- Signal amplification provides high-resolution HDMI signals without signal degradation/loss of quality
Features
- Splits a single HDMI® source to up to 4 HDMI-enabled devices without signal loss
- Passes DVI video signals, DVI to HDMI adapters/cables required - not included
- Audio signal can be output through HDMI or using separate 3.5mm audio outputs
- Quick and easy install
- LED Power/Active indicator for monitoring each port
- Supports HDCP and EDID
- Supports a wide range of PC and Supports HDTV resolutions from VGA to WUXGA and 480p to 1080p
- Supports video and audio
- Cascade up to 3 layers
Applications
- Financial applications include stock tickers or promotion of new products/services
- Display information in waiting rooms or to patients in healthcare facilities
- Great for digital signage applications displaying video advertisements with audio in retail environments
- Ideal for business conference rooms and trade show displays
- Connect HDMI® enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
- Perfect for classrooms and business multimedia presentations
Specification:
Cabling HDMI Carton Quantity 6 Color Black Enclosure Type Steel Industry Standards High Speed HDMI®, HDCP, EDID Product Height 1.73 in [44 mm] Product Length 8.66 in [220 mm] Product Weight 37.91 oz [1074 g] Product Width 5.31 in [135 mm] Shipping (Package) Weight 3.48 lb [1.57 kg] LED Indicators 1 - Power (Green) / Input Signal (Blue) LED Indicators 4 - Green Port signal indicator Maximum Cable Length 50 ft [15.24 m] Maximum Digital Resolutions HDTV 1080p / PC 1920x1200 Supported Resolutions 1080p (1920 x 1080
VGA (640 x 480)
SXGA (1280 x 1024)
UXGA (1600 x 1200)
WUXGA (1920 x 1200)Wide Screen Supported Yes Ports 4 Audio Yes Connector A 1 - 3.5 mm Mini-Jack (3 Position) Female Connector A 1 - HDMI (19 pin) Female Connector B 4 - 3.5 mm Mini-Jack (3 Position) Female Connector B 4 - HDMI (19 pin) Female Input Current 0.8A Output Voltage 12 DC Output Current 1.5A Humidity 0%~80% Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Power Adapter Included Yes Input Voltage 110 ~ 240 AC Center Tip Polarity Positive
