Chatsworth #
12345 Series

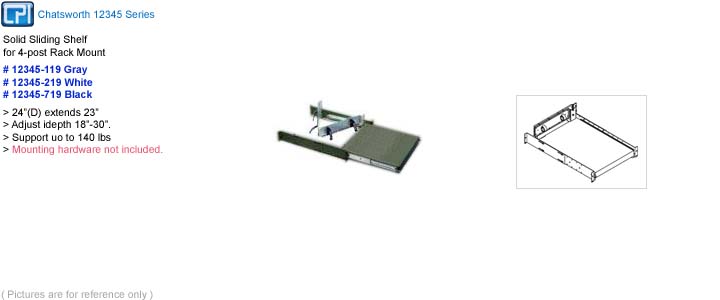

19” 4-post Rack Mount Solid Sliding Shelf
supports up to 140 lbs
SH4S-CPI-12345-xx
Link(s):
Product Family
>
# 12345-719 -
Black
> # 12345-219 - Computer White
> # 12345-119 - Gray
Features:
These specially designed shelves are suitable for applications where
there is a need to access installed equipment for maintenance,
upgrading, cleaning, etc. The preassembled cable management arm prevents
tangles, twists and damage from cuts, kinks, etc. during shelf extension
or retraction as well as maintaining proper bend radius of cable.
Shelves mount to the four vertical mounting rails. 24” depth to provide
clearance for cables, ventilation, power strips, etc. Shelves have
adjustable mounting depths of 18” to 30”.
Specifications:
> Extends 23”
> 24” depth
> Solid (non-vented) Made of strong, lightweight aluminum
> Shelf locks in closed or fully open position, providing stability
> Supports up to 140 lb
> Ships fully assembled
> Installs using 8 #12-24 screws (not included)
> Adjustable mounting depths of 18” to 30”
> Shipping weight: 16 lbs |
