Features:

• Numbers per Unit:
  SKU 050516 Pack of 20pc
  SKU 050517 Pack of 100pc
  SKU 050518 Pack of 1000pc

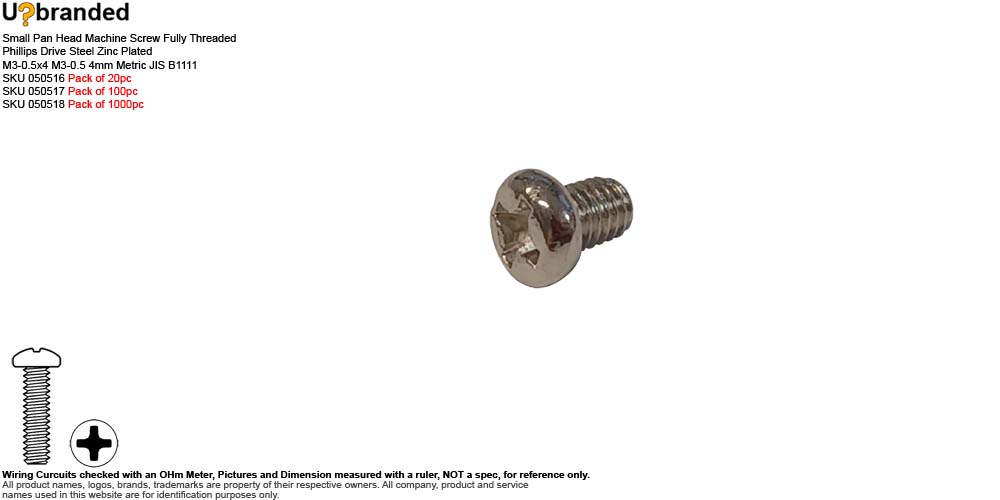

• Description: Small Pan Head Machine Screw Fully Threaded Phillips Drive Steel Zinc Plated M3-0.5x4 M3-0.5 4mm Metric JIS B1111
• Manufacturer: Not Specified
• Brand or Distributor: Unbranded
• Brief Spec.:
  • System: Metric JIS B1111
  • Type: Machine Screw

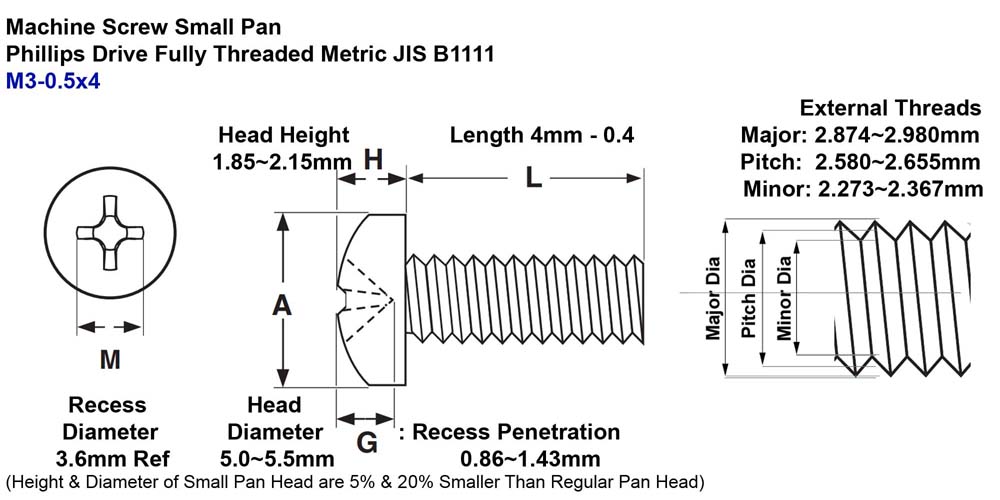

  • Head: Small Pan (Height & Diameter of Small Pan Head are 5% & 20% Smaller Than Regular Pan Head)
    • Head Height: 1.85mm ~ 2.15mm
    • Head Diameter: 5.0mm ~ 5.5mm
    • Recess Diameter: 3.6mm (Ref.)
    • Recess Penetration: 0.86mm ~ 1.43mm
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 1
  • Thread:
    • M3-0.5 Fully Threaded
    • Thread Length: 4mm +/- 0.24
    • Major Diameter: 2.874mm ~ 2.980mm
    • Pitch Diameter: 2.580mm ~ 2.655mm
    • Minor Diameter: 2.273mm ~ 2.367mm
  • Material: Steel
  • Finish: Zinc Plated
• Weight:
  • 0.3 oz per 20pc (Estimated Shipping Weight: 3 oz )
  • 1.5 oz per 100pc (Estimated Shipping Weight: 5 oz )
  • 14.1 oz per 1000pc (Estimated Shipping Weight: 1 lb 1 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
• Information for reference only, might changed without prior notice.
