Features:

• Numbers per Unit:
  SKU 165124 Pack of 4pc
  SKU 165125 Pack of 20pc
  SKU 165126 Pack of 100pc
  SKU 165127 Pack of 1000pc

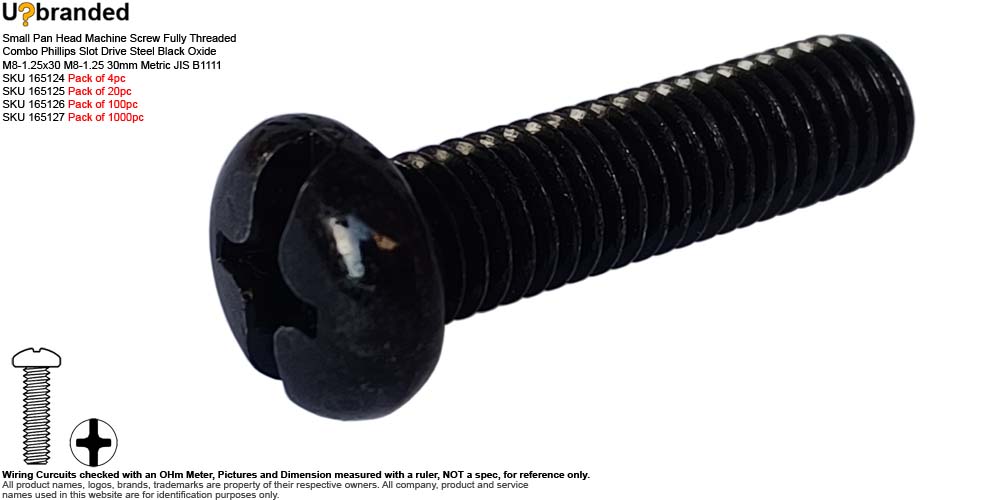

• Description: Small Pan Head Machine Screw Fully Threaded Combo Phillips Slot Drive Steel Black Oxide M8-1.25x30 M8-1.25 30mm Metric JIS B1111
• Manufacturer: Not Specified
• Brand or Distributor: Unbranded
• Brief Spec.:
  • System: Metric JIS B1111
  • Type: Machine Screw
  • Head: Small Pan (Height & Diameter of Small Pan Head are 5% & 20% Smaller Than Regular Pan Head)
    • Head Height: 4.90mm ~ 5.30mm
    • Head Diameter: 13.1mm ~ 14.0mm
    • Recess Diameter: 8.4mm (Ref.)
    • Recess Penetration: 3.38mm ~ 3.88mm
  • Drive:
    • Drive Type: Combo Phillips Slot
    • Driver Size: 4
  • Thread:
    • M8-1.25 Fully Threaded
    • Thread Length: 30mm +/- 0.42
    • Major Diameter: 7.760mm ~ 7.972mm
    • Pitch Diameter: 7.042mm ~ 7.160mm
    • Minor Diameter: 6.272mm ~ 6.438mm
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 1.8 oz per 4pc (Estimated Shipping Weight: 5 oz )
  • 8.8 oz per 20pc (Estimated Shipping Weight: 12 oz )
  • 43.8 oz per 100pc (Estimated Shipping Weight: 3 lb 1 oz )
  • 437.5 oz per 1000pc (Estimated Shipping Weight: 27 lb 11 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some LCD TV Mounting Brackets.
• Information for reference only, might changed without prior notice.
