Features:

• Numbers per Unit:
  SKU 161126 Pack of 20pc
  SKU 161127 Pack of 100pc
  SKU 161128 Pack of 1000pc

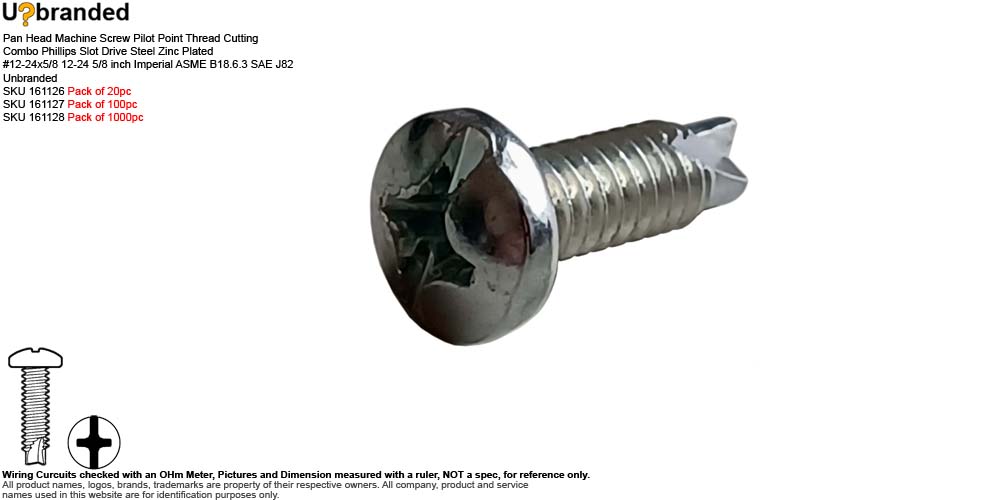

• Description: Pan Head Machine Screw Pilot Point Thread Cutting Combo Phillips Slot Drive Steel Zinc Plated #12-24x5/8 12-24 5/8 inch Imperial ASME B18.6.3 SAE J82 Unbranded
• Manufacturer: Not Specified
• Brand or Distributor: Unbranded

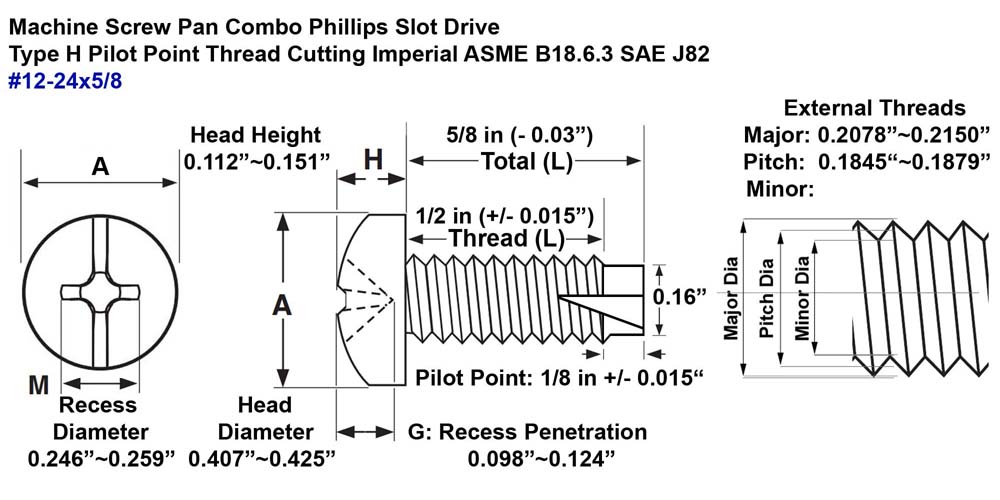

• Brief Spec.:
  • System: Imperial ASME B18.6.3 SAE J82
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 0.112" ~ 0.151"
    • Head Diameter: 0.407" ~ 0.425"
    • Recess Diameter: 0.246" ~ 0.259"
    • Recess Penetration: 0.098" ~ 0.124"
  • Drive:
    • Drive Type: Combo Phillips Slot
    • Driver Size: 3
  • Thread:
    • #12-24 with Pilot Point Thread Cutting
    • Total Length:5/8 inch (0.625" - 0.03")
      • Thread Length: 1/2 inch (+/- 0.015")
      • Pilot Point Length: 1/8 inch (+/- 0.015")
      • Pilot Point Diameter: 0.16"
    • Major Diameter: 0.2078" ~ 0.2150"
    • Pitch Diameter: 0.1845" ~0.1879"
    • Minor Diameter:
  • Material: Steel
  • Finish: Zinc Plated
• Weight:
  • 2.6 oz per 20pc (Estimated Shipping Weight: 6 oz )
  • 13 oz per 100pc (Estimated Shipping Weight: 1 lb )
  • 130 oz per 1000pc (Estimated Shipping Weight: 8 lb 7oz )
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some Server Computer or Network Rackmount Cabinet (Rack).
• Information for reference only, might changed without prior notice.
