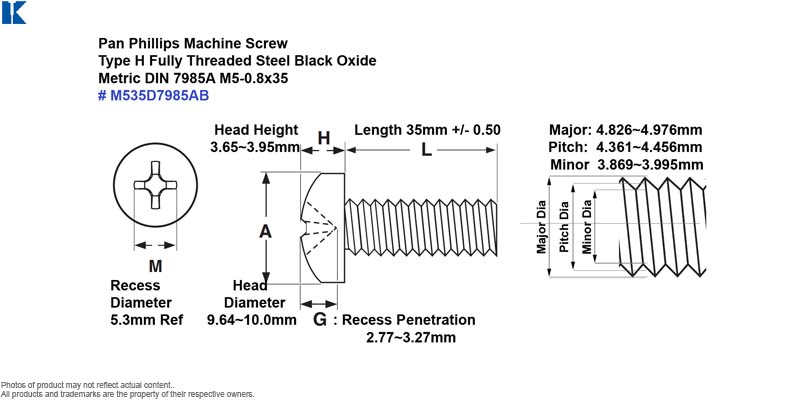

Features:

• Manufacturer: Not Specified
• Distributor: Kanebridge
• General Spec.:
  • Use: Machine Screw
  • System: Metric
  • Standard: DIN 7985A
  • Head: Pan
  • Drive: Phillips
  • Driver Size: 2
  • Material: Class 4.8 Steel
  • Finish: Black Oxide
• Head:
  • Head Height: 3.65mm ~ 3.95mm
  • Head Diameter: 9.64mm ~ 10.0mm
  • Recess Diameter: 5.3mm (Ref.)
  • Recess Penetration: 2.77mm ~ 3.27mm
• Length:
  • Thread Length: 35mm +/- 0.50
• Thread:
  • M5-0.8 Fully Threaded
  • Major Diameter: 4.826mm ~ 4.976mm
  • Pitch Diameter: 4.361mm ~ 4.456mm
  • Minor Diameter: 3.869mm ~ 3.995mm
• Condition: New, bulk, seller repackaged.
• Packaging: Non-retail packaging, in unprinted box or plastic bag.
• Information for reference only, might changed without prior notice.
