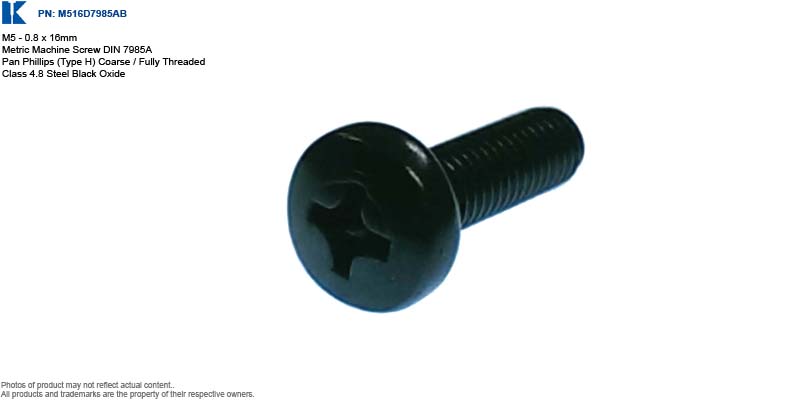

Metric Machine Screws DIN 7985A
M5-0.8x16 (Thread Length 16mm)
Pan Phillips (Type H) Coarse / Fully Threaded
Class 4.8 Steel Black Oxide
SC-PPm-xxx

Features:

  • Manufacturer: Not Specified
  • Distributor: Kanebridge
  • General Spec.:
    • Use: Machine Screw
    • System: Metric
    • Standard: DIN 7985A
    • Head: Pan
    • Drive: Phillips
    • Driver Size: 2
    • Material: Class 4.8 Steel
    • Finish: Black Oxide

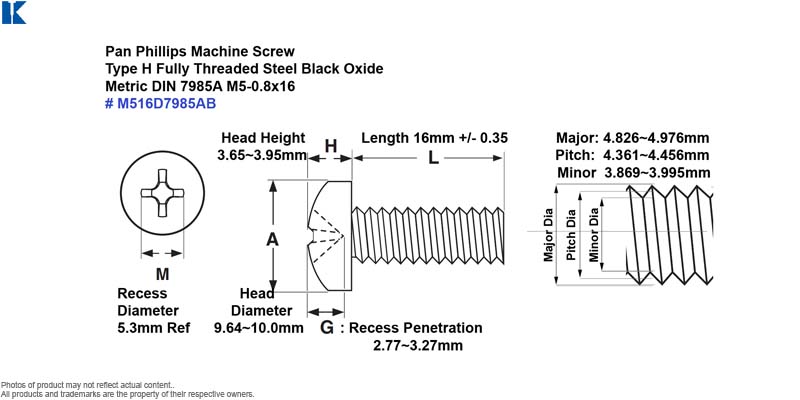

  • Head:
    • Head Height: 3.65mm ~ 3.95mm
    • Head Diameter: 9.64mm ~ 10.0mm
    • Recess Diameter: 5.3mm (Ref.)
    • Recess Penetration: 2.77mm ~ 3.27mm
  • Length:
    • Thread Length: 16mm +/- 0.35
  • Thread:
    • M5-0.8 Fully Threaded
    • Major Diameter: 4.826mm ~ 4.976mm
    • Pitch Diameter: 4.361mm ~ 4.456mm
    • Minor Diameter: 3.869mm ~ 3.995mm
  • Weight 7.4 oz for 100 pcs (estimated shipping weight 9 oz for 100 pcs)
  • Condition: New, bulk, seller repackaged.Condition: New, bulk, seller repackaged.
  • Packaging: Non-retail packaging, in unprinted box or plastic bag.
  • Information for reference only, might changed without prior notice.
