Metric
Machine Screws DIN 7985A
M5-0.8x6 (Thread Length 6mm)
Pan Phillips (Type H) Coarse / Fully Threaded
Class 4.8 Steel Black Oxide
SC-PPm-xxx
Features:
- Manufacturer:
Not Specified
- Distributor:
Kanebridge
- General Spec.:
- Use:
Machine Screw
- System: Metric
- Standard: DIN 7985A
- Head: Pan
- Drive: Phillips
- Driver Size: 2
- Material:
Class 4.8 Steel
- Finish: Black
Oxide

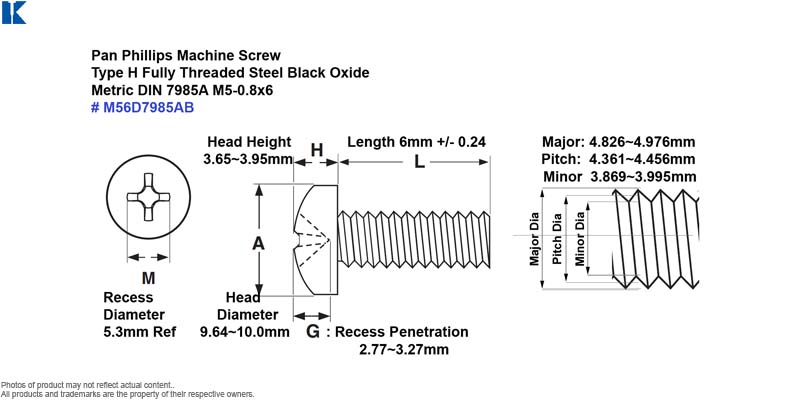

- Head:
- Head Height: 3.65mm ~ 3.95mm
- Head Diameter: 9.64mm ~ 10.0mm
- Recess Diameter: 5.3mm (Ref.)
- Recess Penetration: 2.77mm ~ 3.27mm
- Length:
- Thread Length: 6mm +/- 0.24
- Thread:
- M5-0.8 Fully
Threaded
- Major Diameter: 4.826mm ~ 4.976mm
- Pitch Diameter: 4.361mm ~ 4.456mm
- Minor Diameter: 3.869mm ~ 3.995mm
- Condition: New,
bulk, seller repackaged.
- Packaging: Non-retail
packaging, in unprinted box or plastic bag.
- Information for reference only,
might changed without prior notice.
|
