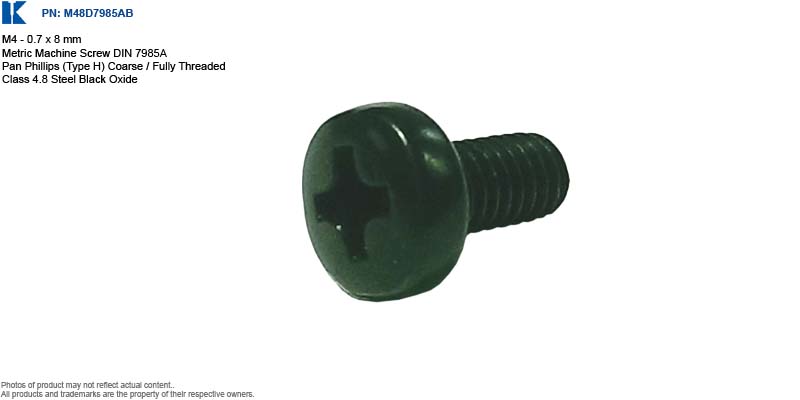

Features:

• Manufacturer: Not Specified
• Distributor: Kanebridge
• General Spec.:
  • Use: Machine Screw
  • System: Metric
  • Standard: DIN 7985A
  • Head: Pan
  • Drive: Phillips
  • Driver Size: 2
  • Material: Class 4.8 Steel
  • Finish: Black Oxide

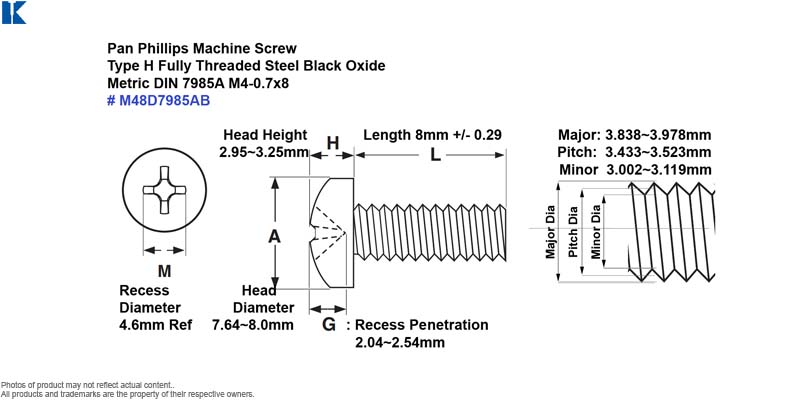

• Head:
  • Head Height: 2.95mm ~ 3.25mm
  • Head Diameter: 7.64mm ~ 8.0mm
  • Recess Diameter: 4.6mm (Ref.)
  • Recess Penetration: 2.04mm ~ 2.54mm
• Length:
  • Thread Length: 8mm +/- 0.29
• Thread:
  • M4-0.7 Fully Threaded
  • Major Diameter: 3.838mm ~ 3.978mm
  • Pitch Diameter: 3.433mm ~ 3.523mm
  • Minor Diameter: 3.002mm ~ 3.119mm
• Weight: 5.2 oz per 100 pcs (estimated shipping weight 6 oz)
• Condition: New, bulk, seller repackaged.
• Packaging: Non-retail packaging, in unprinted box or plastic bag.
• Information for reference only, might changed without prior notice.
