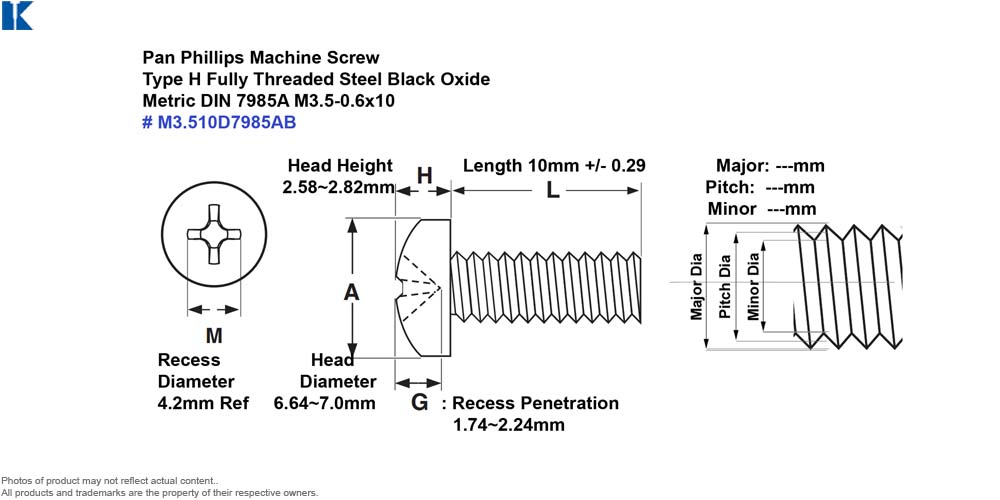

Metric Machine Screws DIN 7985A
M3.5-0.6x10 (Thread Length 6mm)
Pan Phillips (Type H) Coarse / Fully Threaded
Class 4.8 Steel Black Oxide
SC-PPm-xxx

Features:

  • Manufacturer: Not Specified
  • Distributor: Kanebridge
  • General Spec.:
    • Use: Machine Screw
    • System: Metric
    • Standard: DIN 7985A
    • Head: Pan
    • Drive: Phillips
    • Driver Size: 2
    • Material: Class 4.8 Steel
    • Finish: Black Oxide
  • Head:
    • Head Height: 2.58mm ~ 2.82mm
    • Head Diameter: 6.64mm ~ 7.0mm
    • Recess Diameter: 4.2mm (Ref.)
    • Recess Penetration: 1.74mm ~ 2.24mm
  • Length:
    • Thread Length: 10mm +/- 0.29
  • Thread:
    • M3.5-0.6 Fully Threaded
    • Major Diameter: N/A
    • Pitch Diameter: N/A
    • Minor Diameter: N/A
  • Condition: New, bulk, seller repackaged.
  • Weight: 3.9 oz for 100 pcs (Estimated Shipping Weight 6 oz)
  • Packaging: Non-retail packaging, in unprinted box or plastic bag.
  • Information for reference only, might changed without prior notice.
