Features:

• Manufacturer: Not Specified
• Distributor: Kanebridge
• General Spec.:
  • Use: Machine Screw
  • System: Metric
  • Standard: DIN 7985A
  • Head: Pan
  • Drive: Phillips
  • Driver Size: 2
  • Material: Class 4.8 Steel
  • Finish: Black Oxide

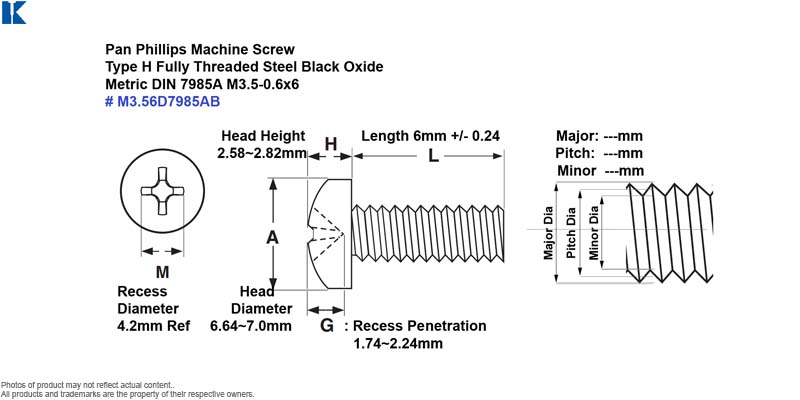

• Head:
  • Head Height: 2.58mm ~ 2.82mm
  • Head Diameter: 6.64mm ~ 7.0mm
  • Recess Diameter: 4.2mm (Ref.)
  • Recess Penetration: 1.74mm ~ 2.24mm
• Length:
  • Thread Length: 6mm +/- 0.24
• Thread:
  • M3.5-0.6 Fully Threaded
  • Major Diameter: N/A
  • Pitch Diameter: N/A
  • Minor Diameter: N/A
• Condition: New, bulk, seller repackaged.
• Packaging: Non-retail packaging, in unprinted box or plastic bag.
• Information for reference only, might changed without prior notice.
