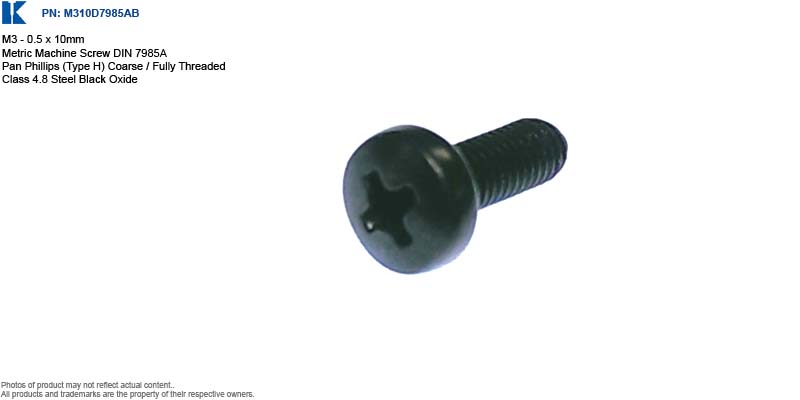

Features:

• Manufacturer: Not Specified
• Distributor: Kanebridge
• General Spec.:
  • Use: Machine Screw
  • System: Metric
  • Standard: DIN 7985A
  • Head: Pan
  • Drive: Phillips
  • Driver Size: 1
  • Material: Class 4.8 Steel
  • Finish: Black Oxide

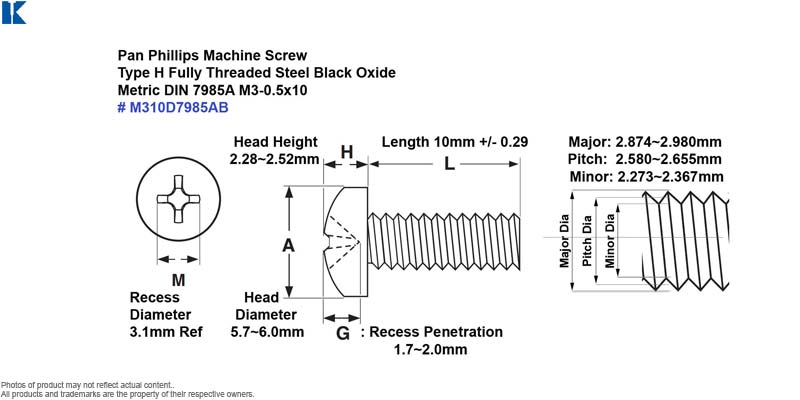

• Head:
  • Head Height: 2.28mm ~ 2.52mm
  • Head Diameter: 5.7mm ~ 6.0mm
  • Recess Diameter: 3.1mm (Ref.)
  • Recess Penetration: 1.7mm ~ 2.0mm
• Length:
  • Thread Length: 10mm +/- 0.29
• Thread:
  • M3-0.5 Fully Threaded
  • Major Diameter: 2.847mm ~ 2.980mm
  • Pitch Diameter: 2.580mm ~ 2.655mm
  • Minor Diameter: 2.273mm ~ 2.367mm
• Weight: 2.8 oz per 100 pcs (estimated shipping weight 5 oz per 100 pcs)
• Condition: New, bulk, seller repackaged.
• Packaging: Non-retail packaging, in unprinted box or plastic bag.
• Information for reference only, might changed without prior notice.
