Metric Machine Screws DIN 7985A
M3-0.5x6 (Thread Length 6mm)
Pan Phillips (Type H) Coarse / Fully Threaded
Class 4.8 Steel Black Oxide
SC-PPm-xxx

Features:

  • Manufacturer: Not Specified
  • Distributor: Kanebridge
  • General Spec.:
    • Use: Machine Screw
    • System: Metric
    • Standard: DIN 7985A
    • Head: Pan
    • Drive: Phillips
    • Driver Size: 1
    • Material: Class 4.8 Steel
    • Finish: Black Oxide

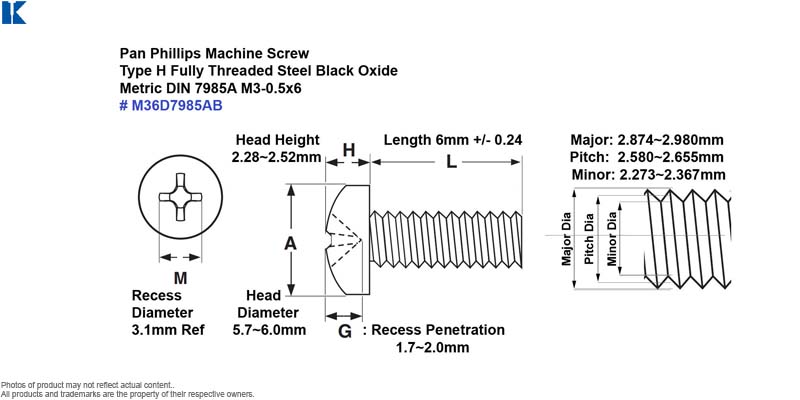

  • Head:
    • Head Height: 2.28mm ~ 2.52mm
    • Head Diameter: 5.7mm ~ 6.0mm
    • Recess Diameter: 3.1mm (Ref.)
    • Recess Penetration: 1.7mm ~ 2.0mm
  • Length:
    • Thread Length: 6mm +/- 0.24
  • Thread:
    • M3-0.5 Fully Threaded
    • Major Diameter: 2.847mm ~ 2.980mm
    • Pitch Diameter: 2.580mm ~ 2.655mm
    • Minor Diameter: 2.273mm ~ 2.367mm
  • Condition: New, bulk, seller repackaged.
  • Weight:
    • 2.2 oz for 100 pcs (Estimated Shipping Weight 4 oz)
    • 22 oz for 1000 pcs (Estimated Shipping Weight 2~3 lb)
  • Packaging: Non-retail packaging, in unprinted box or plastic bag.
  • Information for reference only, might changed without prior notice.
