Features:

• Manufacturer: Not Specified
• Distributor: Kanebridge
• General Spec.:
  • Use: Machine Screw
  • System: Metric

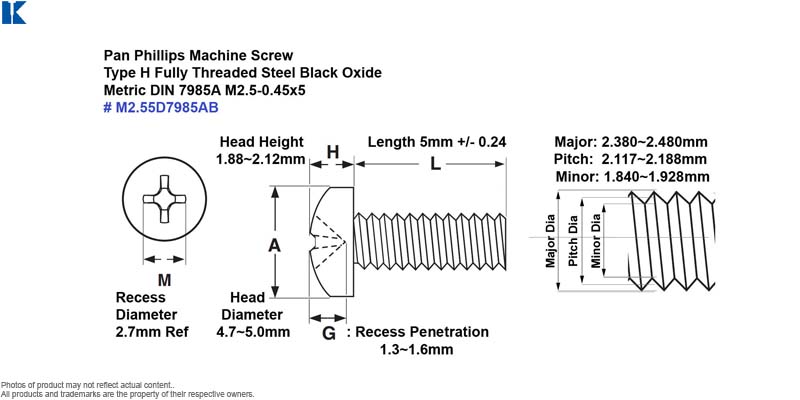

  • Standard: DIN 7985A
  • Head: Pan
  • Drive: Phillips
  • Driver Size: 1
  • Material: Class 4.8 Steel
  • Finish: Black Oxide
• Head:
  • Head Height: 1.88mm ~ 2.12mm
  • Head Diameter: 4.7mm ~ 5.0mm
  • Recess Diameter: 2.7mm (Ref.)
  • Recess Penetration: 1.3mm ~ 1.6mm
• Length:
  • Thread Length: 5mm +/- 0.24
• Thread:
  • M2.5-0.45 Fully Threaded
  • Major Diameter: 2.380mm ~ 2.4801mm
  • Pitch Diameter: 2.117mm ~ 2.188mm
  • Minor Diameter: 1.840mm ~ 1.928mm
• Weight: 0.8 oz per 100 pcs (estimated shipping weight 2 oz per 100 pcs )
• Condition: New, bulk, seller repackaged.
• Packaging: Non-retail packaging, in unprinted box or plastic bag.
• Information for reference only, might changed without prior notice.
