Features:

• Numbers per Unit:
  SKU 190301 Pack of 20pc
  SKU 190302 Pack of 100pc
  SKU 190303 Pack of 1000pc

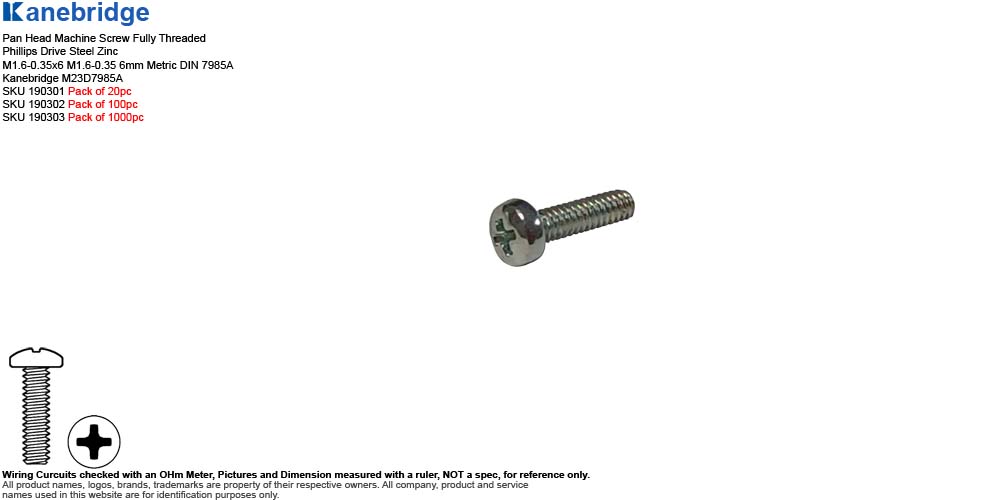

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Zinc M1.6-0.35x6 M1.6-0.35 6mm Metric DIN 7985A Kanebridge M166D7985A
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

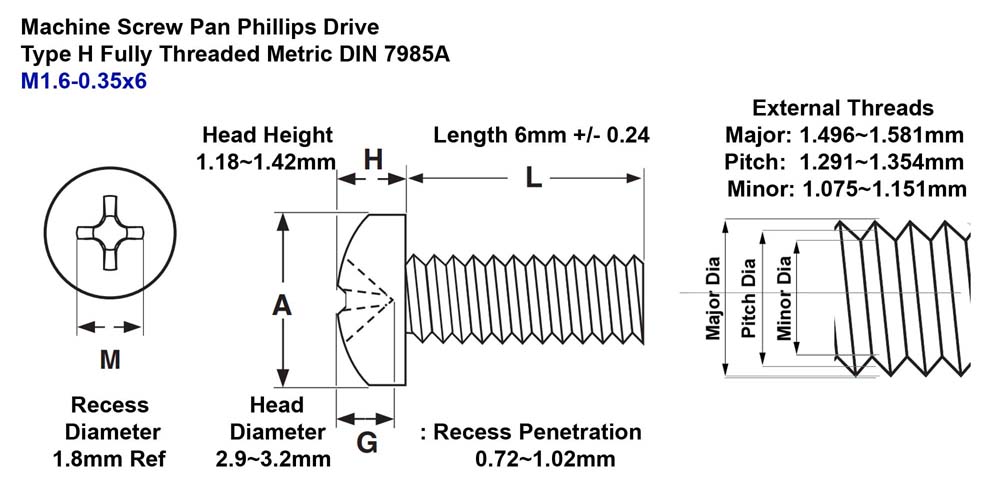

• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 1.18mm ~ 1.42mm
    • Head Diameter: 2.9mm ~ 3.2mm
    • Recess Diameter: 1.8mm (Ref.)
    • Recess Penetration: 0.72mm ~ 1.02mm
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 1
  • Thread:
    • M1.6-0.35 Fully Threaded
    • Thread Length: 6mm +/- 0.24
    • Major Diameter: 1.496mm ~ 1.581mm
    • Pitch Diameter: 1.291mm ~ 1.354mm
    • Minor Diameter: 1.075mm ~ 1.151mm
  • Material: Steel
  • Finish: Zinc
• Weight:
  • 0.1 oz per 20pc (Estimated Shipping Weight: 3 oz )
  • 0.5 oz per 100pc (Estimated Shipping Weight: 3 oz )
  • 4.5 oz per 1000pc (Estimated Shipping Weight: 8 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some laptop computers.
• Information for reference only, might changed without prior notice.
