• Screw Head Dimension - Machine Screw Metric Pan Head Phillips Drive (K.B. Corp.)
• Screw Thread Dimension -Metric Mechanical and Performance Requirements - Machine Screws / Steel, Stainless, Aluminum (K.B. Crop.)

Features:

• Numbers per Unit:
  SKU 170826 Pack of 4pc
  SKU 170827 Pack of 20pc
  SKU 170828 Pack of 100pc
  SKU 170829 Pack of 1000pc
• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Zinc Plated M8-1.25x30 M8-1.25 30mm Metric DIN 7985A Kanebridge M825D7985AB
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

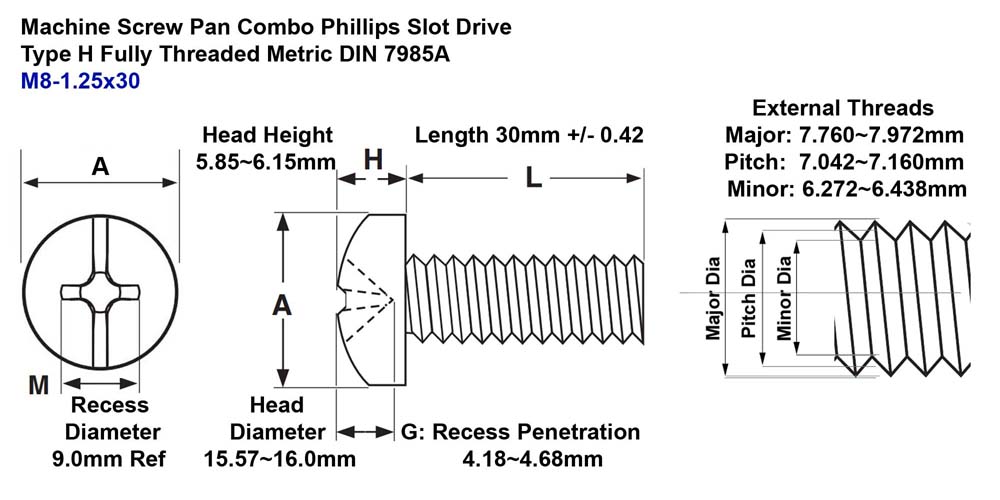

• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 5.85mm ~ 6.15mm
    • Head Diameter: 15.57mm ~ 16.0mm
    • Recess Diameter: 9.0mm (Ref.)
    • Recess Penetration: 4.18mm ~ 4.68mm
  • Drive:
    • Drive Type: Combo Phillips Slot
    • Driver Size: 4
  • Thread:
    • M8-1.25 Fully Threaded
    • Thread Length: 30mm +/- 0.42
    • Major Diameter: 7.760mm ~ 7.972mm
    • Pitch Diameter: 7.042mm ~ 7.160mm
    • Minor Diameter: 6.272mm ~ 6.438mm
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 2.2 oz per 4pc (Estimated Shipping Weight: 5 oz )
  • 10.7 oz per 20pc (Estimated Shipping Weight: 13 oz )
  • 53.3 oz per 100pc (Estimated Shipping Weight: 3 lb 8 oz )
  • 533 oz per 1000pc (Estimated Shipping Weight: 33 lb 10 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some LCD TV Mounting Brackets.
• Information for reference only, might changed without prior notice.
