• Screw Head Dimension - Machine Screw Metric Pan Head Phillips Drive (K.B. Corp.)
• Screw Thread Dimension -Metric Mechanical and Performance Requirements - Machine Screws / Steel, Stainless, Aluminum (K.B. Crop.)

Features:

• Numbers per Unit:
  SKU 171234 Pack of 4pc
  SKU 171235 Pack of 20pc
  SKU 171236 Pack of 100pc
  SKU 171237 Pack of 1000pc

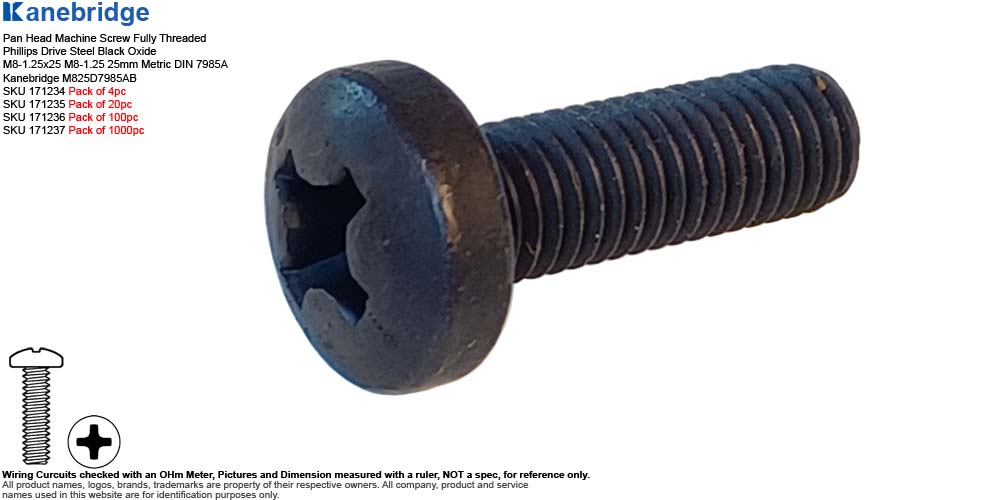

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Zinc Plated M8-1.25x25 M8-1.25 25mm Metric DIN 7985A Kanebridge M825D7985AB
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge
• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 5.85mm ~ 6.15mm
    • Head Diameter: 15.57mm ~ 16.0mm
    • Recess Diameter: 9.0mm (Ref.)
    • Recess Penetration: 4.18mm ~ 4.68mm
  • Drive:
    • Drive Type: Combo Phillips Slot
    • Driver Size: 4
  • Thread:
    • M8-1.25 Fully Threaded
    • Thread Length: 25mm +/- 0.42
    • Major Diameter: 7.760mm ~ 7.972mm
    • Pitch Diameter: 7.042mm ~ 7.160mm
    • Minor Diameter: 6.272mm ~ 6.438mm
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 2.0 oz per 4pc (Estimated Shipping Weight: 5 oz)
  • 10.1 oz per 20pc (Estimated Shipping Weight: 13 oz)
  • 50.6 oz per 100pc (Estimated Shipping Weight: 3 lb 6 oz)
  • 506.7 oz per 1000pc (Estimated Shipping Weight: 32 lb)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some LCD TV Mounting Brackets.
• Information for reference only, might changed without prior notice.
