Features:

• Numbers per Unit:
  SKU 170109 Pack of 4pc
  SKU 170110 Pack of 10pc
  SKU 170111 Pack of 20pc
  SKU 170112 Pack of 100pc
  SKU 170113 Pack of 1000pc

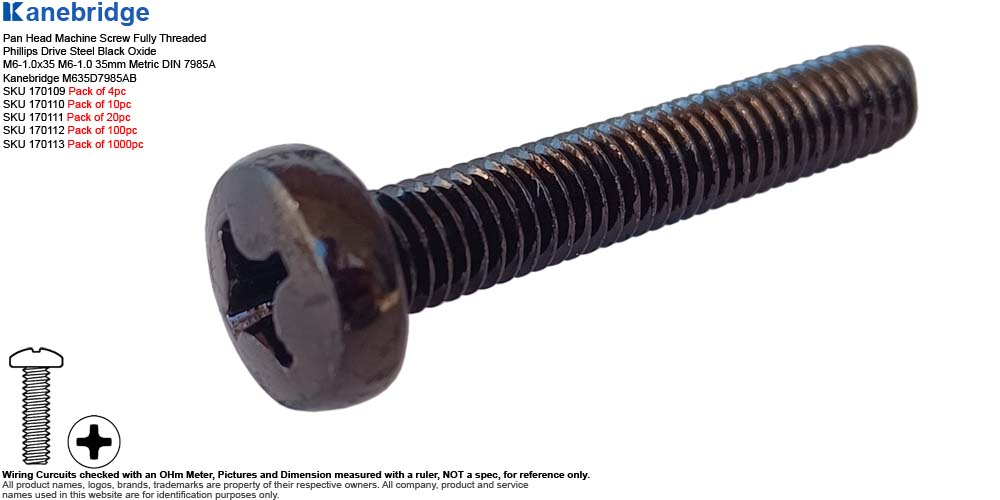

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Oxide M6-1.0x35 M6-1.0 35mm Metric DIN 7985A Kanebridge M635D7985AB
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

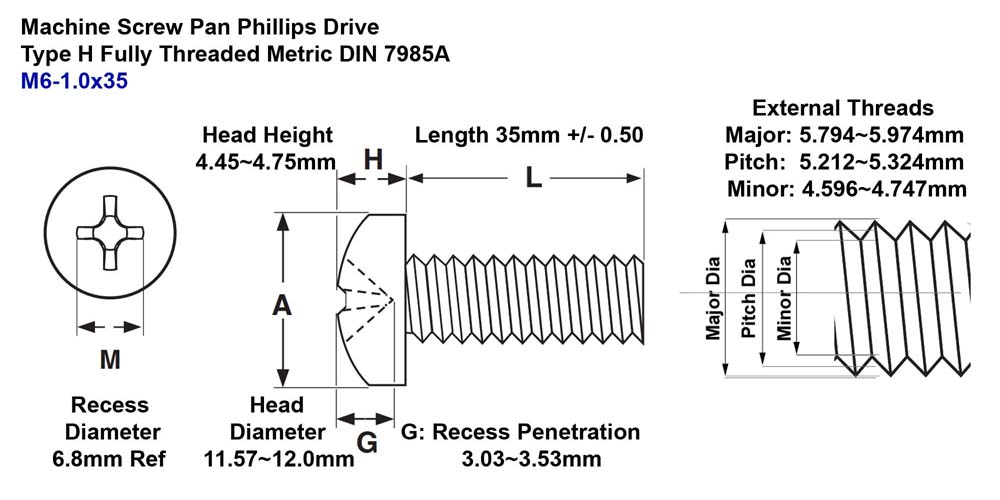

• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 4.45mm ~ 4.75mm
    • Head Diameter: 11.57mm ~ 12.0mm
    • Recess Diameter: 6.8mm (Ref.)
    • Recess Penetration: 3.03mm ~ 3.53mm
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 3
  • Thread:
    • M6-1.0 Fully Threaded
    • Thread Length: 35mm +/- 0.50
    • Major Diameter: 5.794mm ~ 5.974mm
    • Pitch Diameter: 5.212mm ~ 5.324mm
    • Minor Diameter: 4.596mm ~ 4.747mm
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 1.2 oz per 4pc (Estimated Shipping Weight: 5 oz)
  • 3.0 oz per 10pc (Estimated Shipping Weight: 6 oz)
  • 6.1 oz per 20pc (Estimated Shipping Weight: 9 oz)
  • 30.2 oz per 100pc (Estimated Shipping Weight: 2 lb 1 oz)
  • 302.4 oz per 1000pc (Estimated Shipping Weight: 19 lb 4 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some Server Computer or Network Rackmount Cabinet (Rack).
• Information for reference only, might changed without prior notice.
