Features:

• Numbers per Unit:
  SKU 210435 Pack of 20pc
  SKU 210436 Pack of 100pc
  SKU 210437 Pack of 1000pc

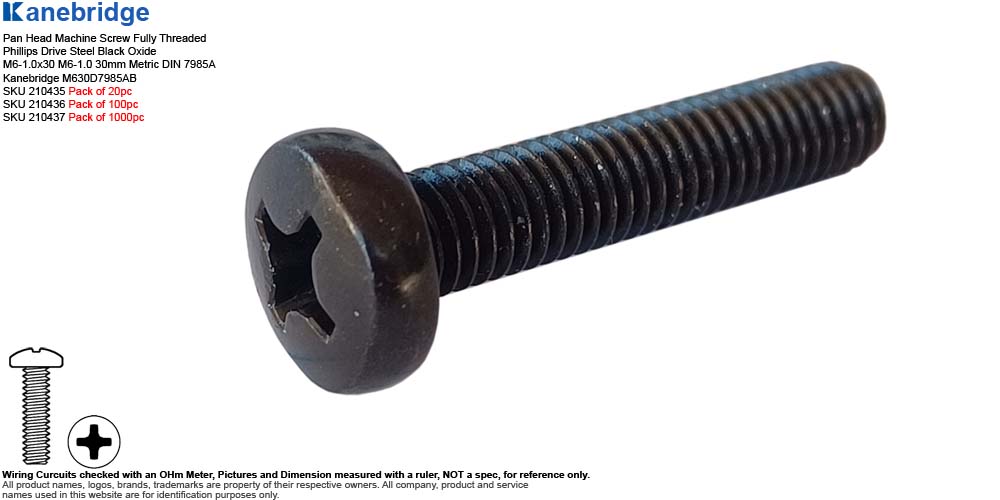

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Oxide M6-1.0x30 M6-1.0 30mm Metric DIN 7985A Kanebridge M630D7985AB
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

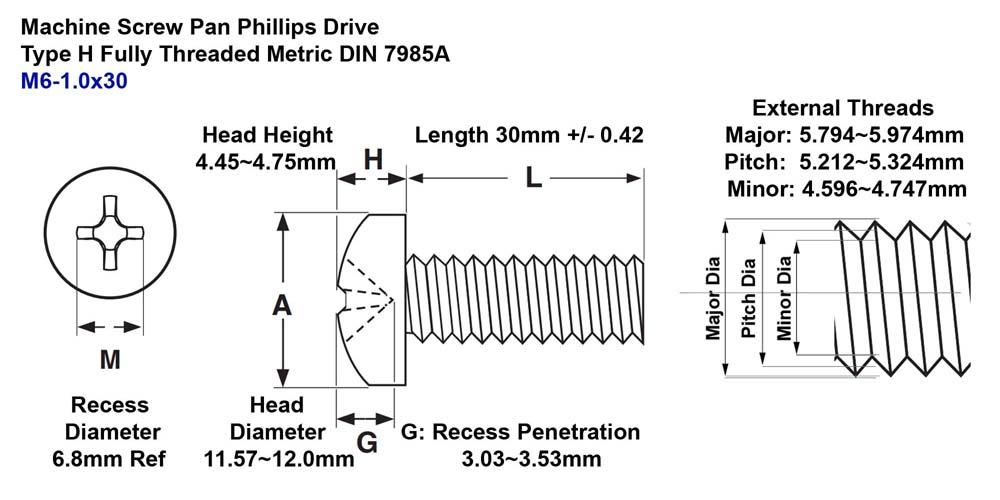

• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 4.45mm ~ 4.75mm
    • Head Diameter: 11.57mm ~ 12.0mm
    • Recess Diameter: 6.8mm (Ref.)
    • Recess Penetration: 3.03mm ~ 3.53mm
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 3
  • Thread:
    • M6-1.0 Fully Threaded
    • Thread Length: 30mm +/- 0.42
    • Major Diameter: 5.794mm ~ 5.974mm
    • Pitch Diameter: 5.212mm ~ 5.324mm
    • Minor Diameter: 4.596mm ~ 4.747mm
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 5.4 oz per 20pc (Estimated Shipping Weight: 9 oz )
  • 27.0 oz per 100pc (Estimated Shipping Weight: 1 lb 12 oz)
  • 270.4 oz per 1000pc (Estimated Shipping Weight: 17 lb 4 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some Server Computer or Network Rackmount Cabinet (Rack).
• Information for reference only, might changed without prior notice.
