Features:

• Numbers per Unit:
  SKU 050127 Pack of 20pc
  SKU 050128 Pack of 100pc
  SKU 050129 Pack of 1000pc

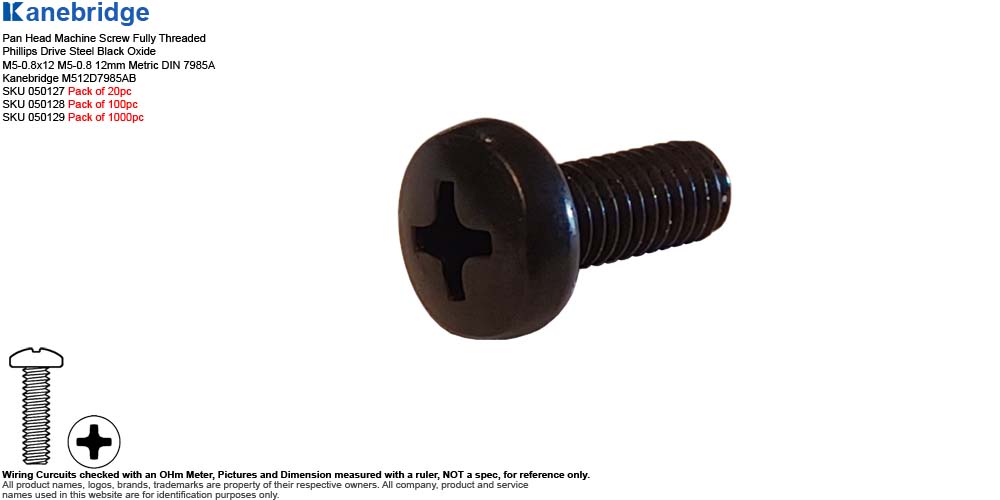

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Oxide M5-0.8x12 M5-0.8 12mm Metric DIN 7985A Kanebridge M512D7985AB
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

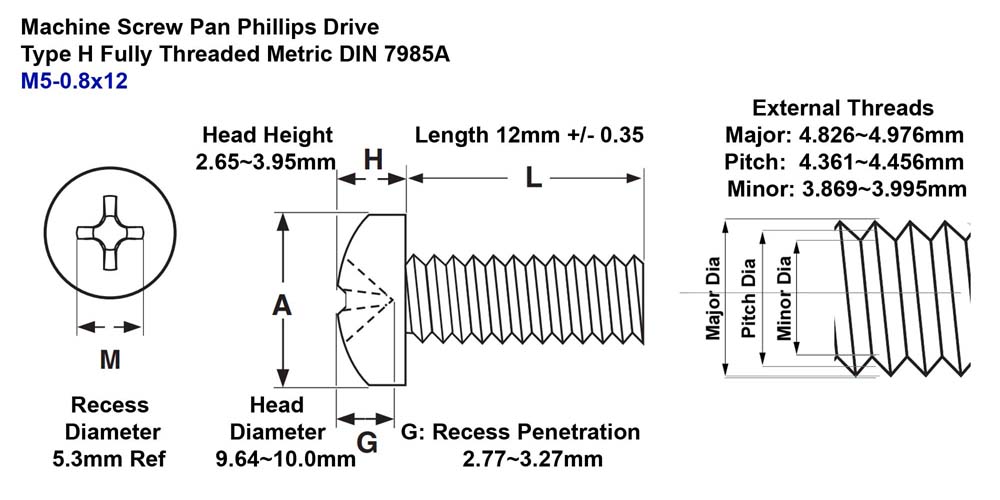

• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 3.65mm ~ 3.95mm
    • Head Diameter: 9.64mm ~ 10.0mm
    • Recess Diameter: 5.3mm (Ref.)
    • Recess Penetration: 2.77mm ~ 3.27mm
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 2
  • Thread:
    • M5-0.8 Fully Threaded
    • Thread Length: 12mm +/- 0.35
    • Major Diameter: 4.862mm ~ 4.976mm
    • Pitch Diameter: 4.361mm ~ 4.456mm
    • Minor Diameter: 3.869mm ~ 3.995mm
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 2.2 oz per 20pc (Estimated Shipping Weight: 5 oz )
  • 11.0 oz per 100pc (Estimated Shipping Weight: 14 oz )
  • 110.1 oz per 1000pc (Estimated Shipping Weight: 7 lb 1 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
• Information for reference only, might changed without prior notice.
