Features:

• Numbers per Unit:
  SKU 180930 Pack of 20pc
  SKU 180931 Pack of 100pc
  SKU 180932 Pack of 1000pc

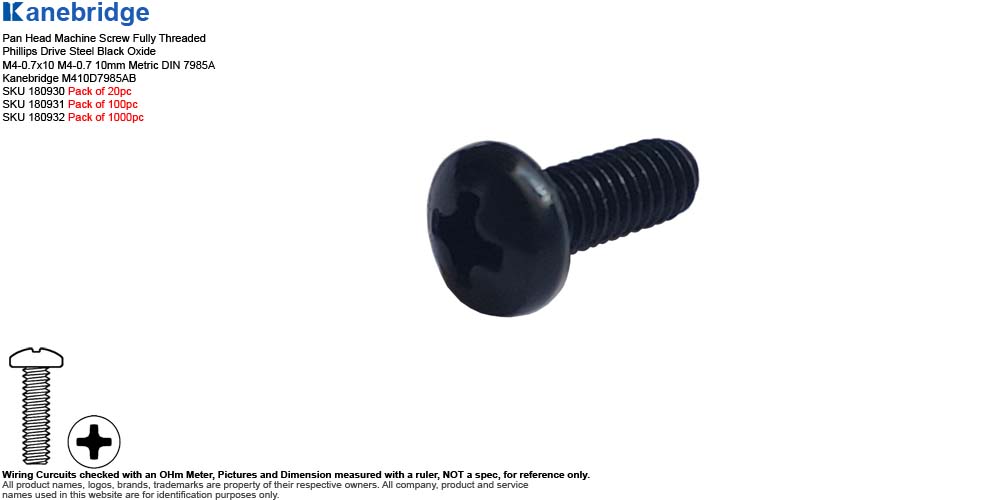

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Oxide M4-0.7x10 M4-0.7 10mm Metric DIN 7985A Kanebridge M410D7985AB
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

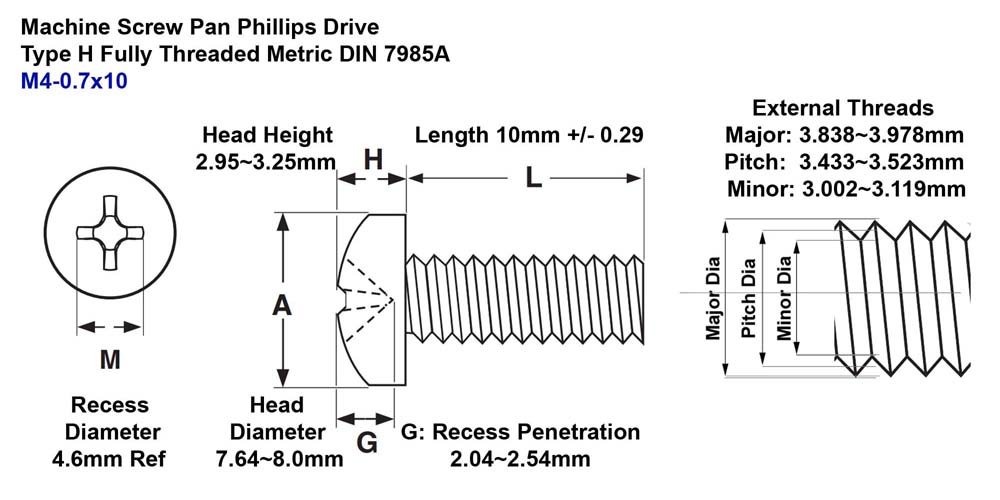

• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 2.95mm ~ 3.25mm
    • Head Diameter: 7.64mm ~ 8.0mm
    • Recess Diameter: 4.6mm (Ref.)
    • Recess Penetration: 2.04mm ~ 2.54mm
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 2
  • Thread:
    • M4-0.7 Fully Threaded
    • Thread Length: 10mm +/- 0.29
    • Major Diameter: 3.838mm ~ 3.978mm
    • Pitch Diameter: 3.433mm ~ 3.523mm
    • Minor Diameter: 3.002mm ~ 3.119mm
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 1.1 oz per 20pc (Estimated Shipping Weight: 4 oz )
  • 5.4 oz per 100pc (Estimated Shipping Weight: 8 oz )
  • 53.9 oz per 1000pc (Estimated Shipping Weight: 3 lb 9 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
• Information for reference only, might changed without prior notice.
