• Screw Head Dimension - Machine Screw Metric Pan Head Phillips Drive (K.B. Corp.)
• Screw Thread Dimension -Metric Mechanical and Performance Requirements - Machine Screws / Steel, Stainless, Aluminum (K.B. Crop.)

Features:

• Numbers per Unit:
  SKU 200931 Pack of 20pc
  SKU 200932 Pack of 100pc
  SKU 200933 Pack of 1000pc

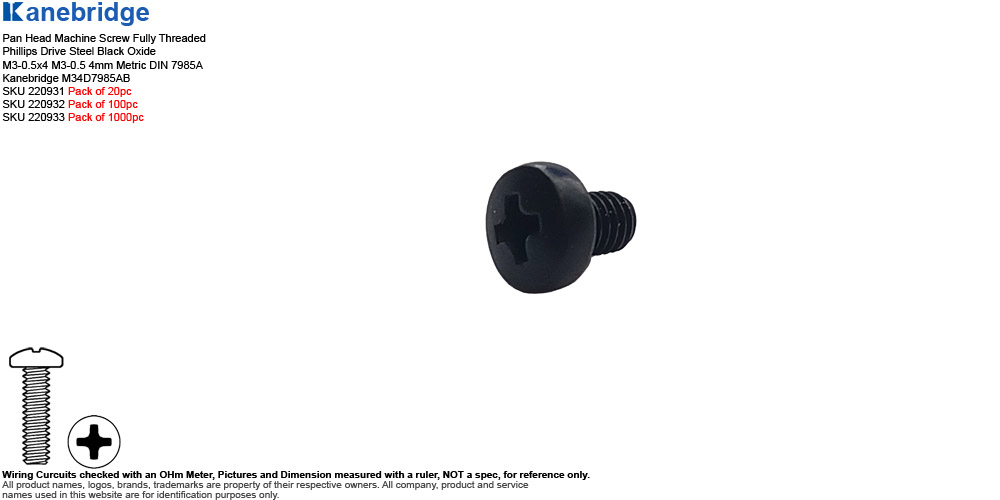

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Oxide M3-0.5x4 M3-0.5 4mm Metric DIN 7985A Kanebridge M34D7985AB
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

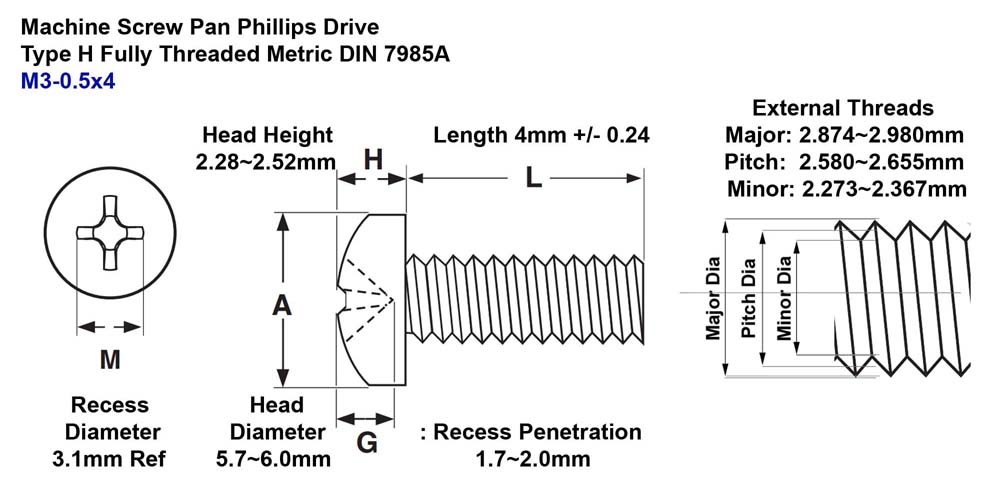

• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 2.28mm ~ 2.52mm
    • Head Diameter: 5.7mm ~ 6.0mm
    • Recess Diameter: 3.1mm (Ref.)
    • Recess Penetration: 1.7mm ~ 2.0mm
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 1
  • Thread:
    • M3-0.5 Fully Threaded
    • Thread Length: 4mm +/- 0.24
    • Major Diameter: 2.874mm ~ 2.980mm
    • Pitch Diameter: 2.580mm ~ 2.655mm
    • Minor Diameter: 2.273mm ~ 2.367mm
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 0.4 oz per 20pc (Estimated Shipping Weight: 3 oz )
  • 2.2 oz per 100pc (Estimated Shipping Weight: 5 oz )
  • 21.9 oz per 1000pc (Estimated Shipping Weight: 1 lb 9 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some laptop computers.
• Information for reference only, might changed without prior notice.
