• Screw Head Dimension - Machine Screw Imperial Pan Head Phillips Drive (K.B. Corp.)
• Screw Thread Dimension -Metric Mechanical and Performance Requirements - Machine Screws / Steel, Stainless, Aluminum (K.B. Crop.)

Features:

• Numbers per Unit:
  SKU 190571 Pack of 20pc
  SKU 190572 Pack of 100pc
  SKU 190573 Pack of 1000pc

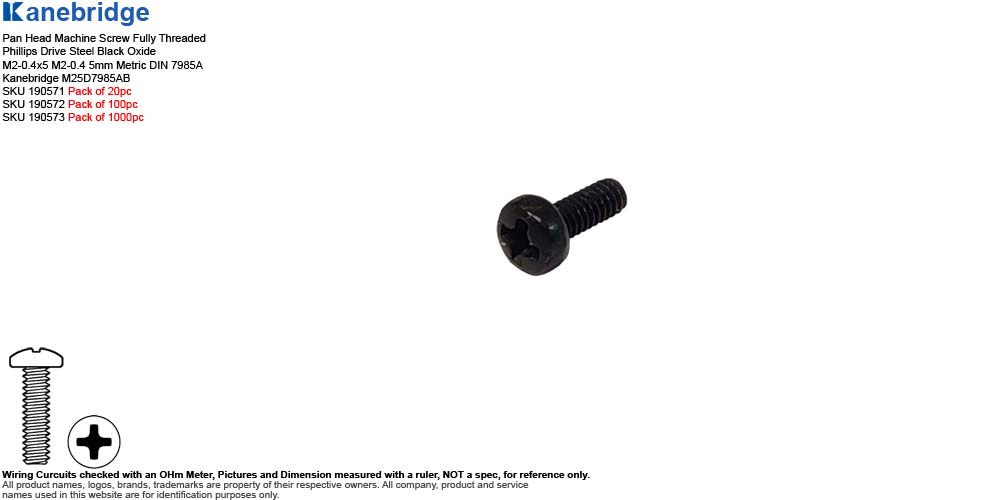

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Oxide M2-0.4x5 M2-0.4 5mm Metric DIN 7985A Kanebridge M25D7985AB
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

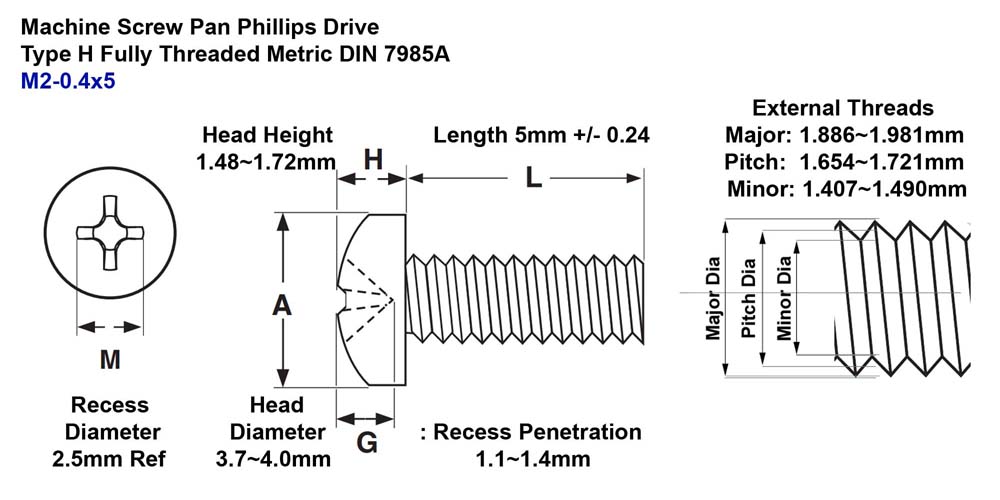

• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 1.48mm ~ 1.72mm
    • Head Diameter: 3.7mm ~ 4.0mm
    • Recess Diameter: 2.5mm (Ref.)
    • Recess Penetration: 1.1mm ~ 1.4mm
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 1
  • Thread:
    • M2-0.4 Fully Threaded
    • Thread Length: 5mm +/- 0.24
    • Major Diameter: 1.886mm ~ 1.981mm
    • Pitch Diameter: 1.654mm ~ 1.721mm
    • Minor Diameter: 1.407mm ~ 1.490mm
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 0.2 oz per 20pc (Estimated Shipping Weight: 3 oz )
  • 0.7 oz per 100pc (Estimated Shipping Weight: 3 oz )
  • 6.4 oz per 1000pc (Estimated Shipping Weight: 9 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some laptop computers.
• Information for reference only, might changed without prior notice.
