Features:

• Numbers per Unit:
  SKU 050204 Pack of 20pc
  SKU 050205 Pack of 100pc
  SKU 050206 Pack of 1000pc

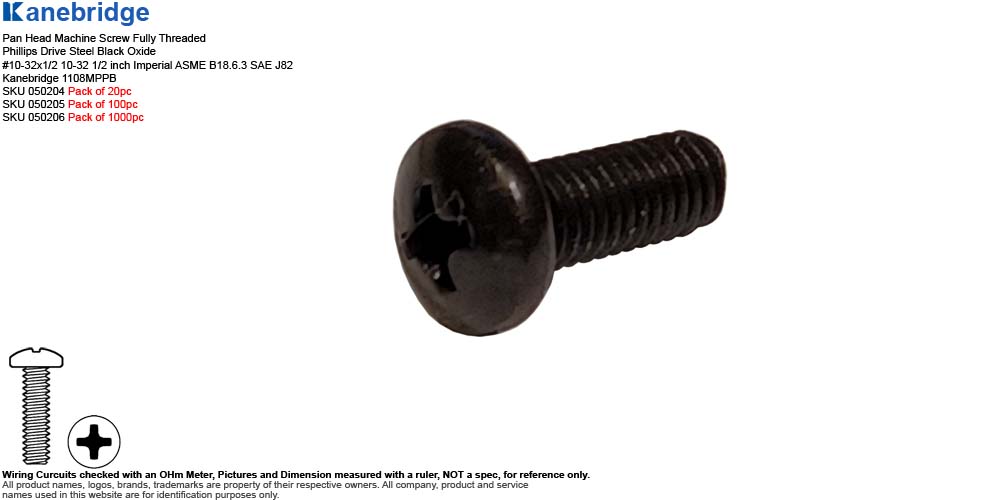

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Oxide #10-32x1/2 10-32 1/2 inch Imperial ASME B18.6.3 SAE J82 Kanebridge 1108MPPB
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

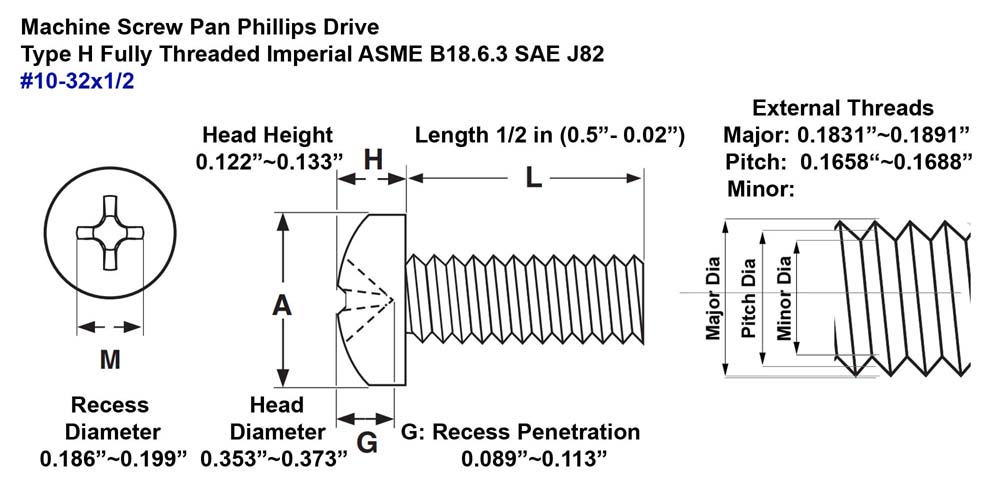

• Brief Spec.:
  • System: Imperial ASME B18.6.3 SAE J82
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 0.122" ~ 0.133"
    • Head Diameter: 0.353" ~ 0.373"
    • Recess Diameter: 0.186" ~ 0.199"
    • Recess Penetration: 0.089" ~ 0.113"
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 2
  • Thread:
    • #10-32 Fully Threaded
    • Thread Length:1/2 inch (0.5" - 0.02")
    • Major Diameter: 0.1831" ~ 0.1891"
    • Pitch Diameter: 0.1658" ~0.1688"
    • Minor Diameter:
  • Material: Steel
  • Finish: Black Oxide
• Weight:
  • 1.9 oz per 20pc (Estimated Shipping Weight: 5 oz )
  • 9.3 oz per 100pc (Estimated Shipping Weight: 12 oz )
  • 92.8 oz per 1000pc (Estimated Shipping Weight: 6 lb 2 oz )
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some Server Computer or Network Rackmount Cabinet (Rack).
• Information for reference only, might changed without prior notice.
