Features:

• Numbers per Unit:
  SKU 111120 Pack of 20pc
  SKU 111121 Pack of 100pc
  SKU 111122 Pack of 1000pc

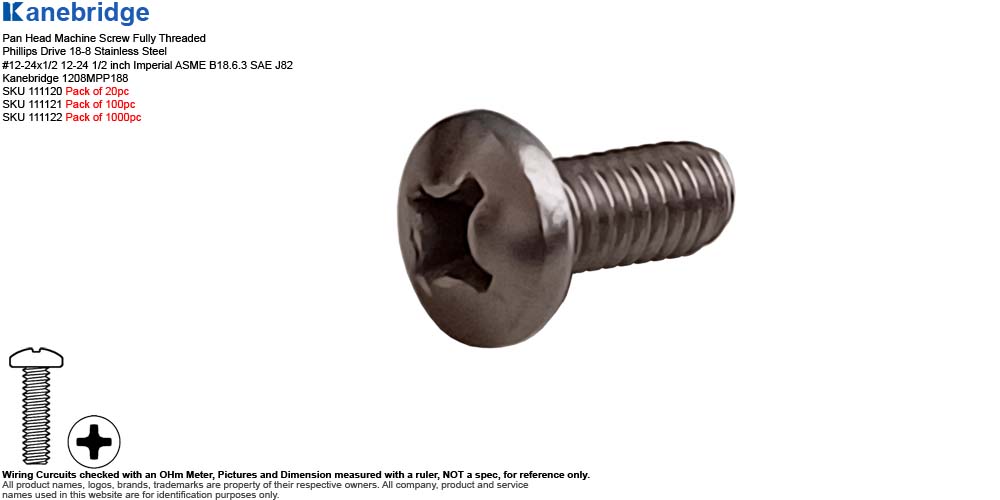

• Description: Pan Head Machine Screw Fully Threaded Phillips Drive Stainless Steel 18-8 #12-24x1/2 12-24 1/2 inch Imperial ASME B18.6.3 SAE J82 Kanebridge 1208MPP188
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge

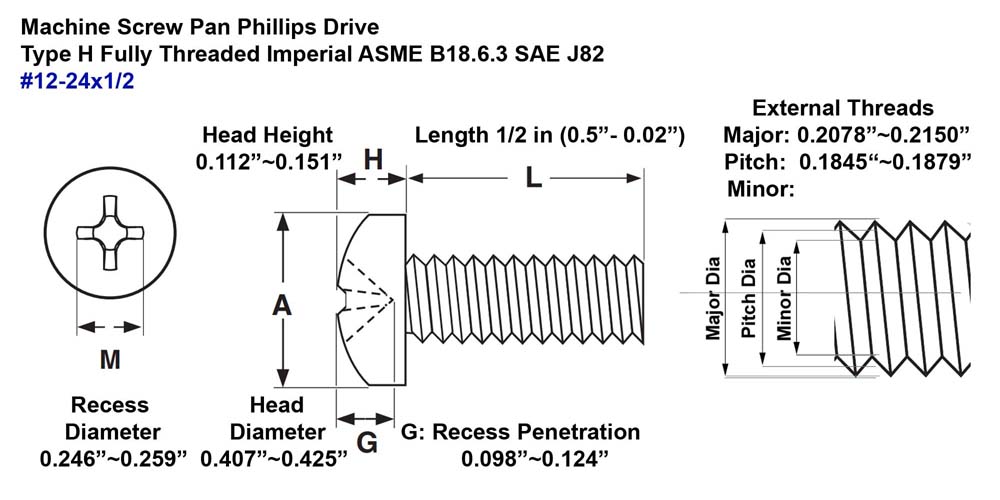

• Brief Spec.:
  • System: Imperial ASME B18.6.3 SAE J82
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 0.112" ~ 0.151"
    • Head Diameter: 0.407" ~ 0.425"
    • Recess Diameter: 0.246" ~ 0.259"
    • Recess Penetration: 0.098" ~ 0.124"
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 3
  • Thread:
    • #12-24 Fully Threaded
    • Thread Length:1/2 inch (0.5" - 0.02")
    • Major Diameter: 0.2078" ~ 0.2150"
    • Pitch Diameter: 0.1845" ~0.1879"
    • Minor Diameter:
  • Material: Stainless Steel 18-8
  • Finish: Stainless Steel
• Weight:
  • 2.4 oz per 20pc (Estimated Shipping Weight: 6 oz )
  • 12.0 oz per 100pc (Estimated Shipping Weight: 15 oz )
  • 120.0 oz per 1000pc (Estimated Shipping Weight: 7 lb 13 oz )
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some Server Computer or Network Rackmount Cabinet (Rack).
• Information for reference only, might changed without prior notice.
