Features:

• Numbers per Unit:
  SKU 090391 Pack of 4pc
  SKU 090392 Pack of 20pc
  SKU 090393 Pack of 100pc
  SKU 090394 Pack of 1000pc

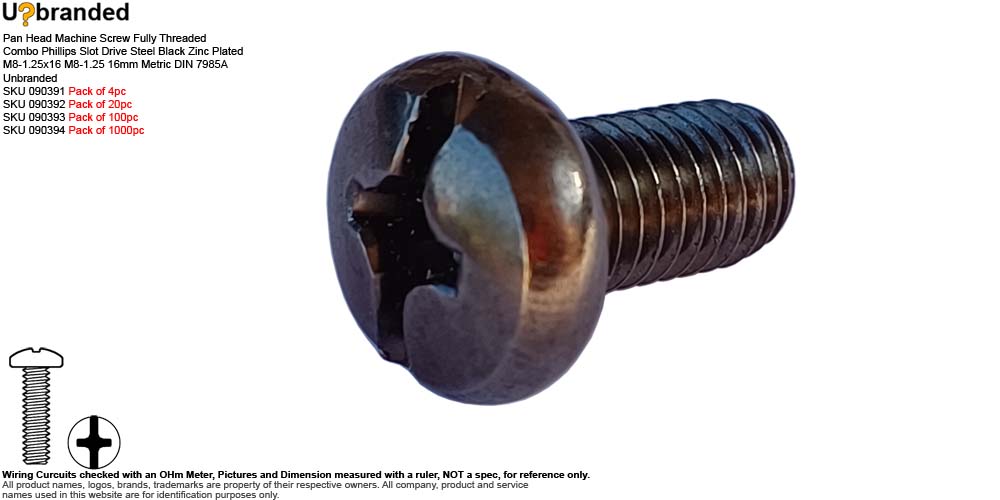

• Description: Pan Head Machine Screw Fully Threaded Combo Phillips Slot Drive Steel Black Zinc Plated M8-1.25x16 M8-1.25 16mm Metric DIN 7985A Unbranded
• Manufacturer: Not Specified
• Brand or Distributor: Unbranded
• Brief Spec.:
  • System: Metric DIN 7985A
  • Type: Machine Screw
  • Head: Pan
    • Head Height: 5.85mm ~ 6.15mm
    • Head Diameter: 15.57mm ~ 16.0mm
    • Recess Diameter: 9.0mm (Ref.)
    • Recess Penetration: 4.18mm ~ 4.68mm
  • Drive:
    • Drive Type: Combo Phillips Slot
    • Driver Size: 4
  • Thread:
    • M8-1.25 Fully Threaded
    • Thread Length: 16mm +/- 0.35
    • Major Diameter: 7.760mm ~ 7.972mm
    • Pitch Diameter: 7.042mm ~ 7.160mm
    • Minor Diameter: 6.272mm ~ 6.438mm
  • Material: Steel
  • Finish: Black Zinc Plated
• Weight:
  • 1.5 oz per 4pc (Estimated Shipping Weight: 5 oz )
  • 7.4 oz per 20pc (Estimated Shipping Weight: 11 oz )
  • 36.8 oz per 100pc (Estimated Shipping Weight: 2 lb 8 oz )
  • 368 oz per 1000pc (Estimated Shipping Weight: 23 lb 5 oz)
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Widely used for some LCD TV Mounting Brackets.
• Information for reference only, might changed without prior notice.
