Features:

• Numbers per Unit:
  SKU 190581 Pack of 20pc
  SKU 190582 Pack of 100pc
  SKU 190583 Pack of 1000pc

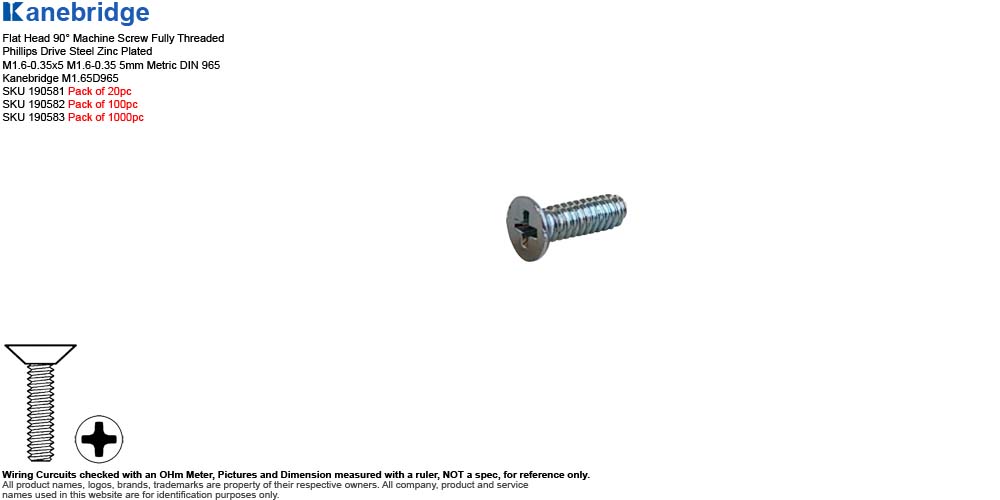

• Description: Flat Head 90° Machine Screw Fully Threaded Phillips Drive Steel Zinc Plated M1.6-0.35x5 M1.6-0.35 5mm Metric DIN 965 Kanebridge M1.65D965
• Manufacturer: Not Specified
• Brand or Distributor: Kanebridge
• Brief Spec.:

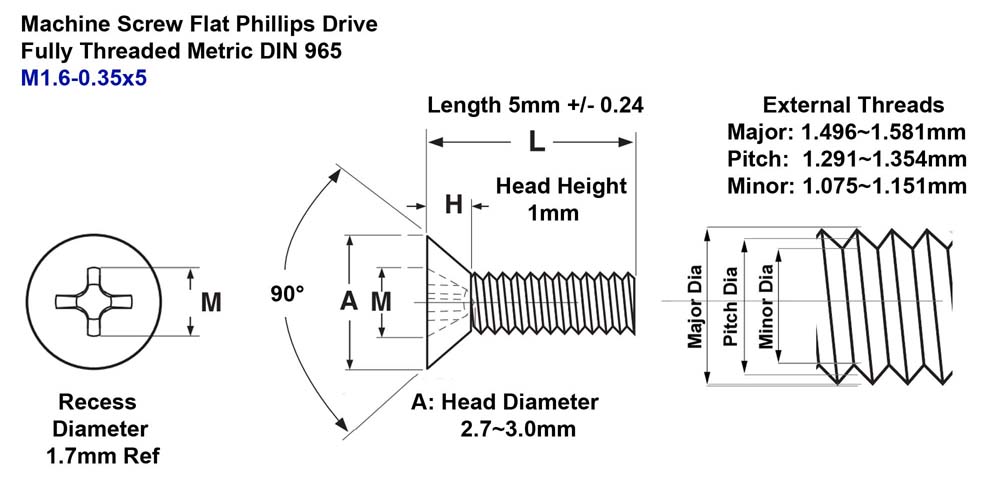

  • System: Metric DIN 965
  • Type: Machine Screw
  • Head: Flat Head 90°
    • Head Height: 1mm
    • Head Diameter: 2.7mm ~ 3.0mm
    • Recess Diameter: 1.7mm (Ref.)
    • Recess Penetration:
  • Drive:
    • Drive Type: Phillips
    • Driver Size: 0
  • Thread:
    • M1.6-0.35 Fully Threaded
    • Thread Length: 5mm +/- 0.24
    • Major Diameter: 1.496mm ~ 1.581mm
    • Pitch Diameter: 1.291mm ~ 1.354mm
    • Minor Diameter: 1.075mm ~ 1.151mm
  • Material: Steel
  • Finish: Zinc Plated
• Weight:
  • 0.1 oz per 20pc (Estimated Shipping Weight: 3 oz )
  • 0.3 oz per 100pc (Estimated Shipping Weight: 3 oz )
  • 2.3 oz per 1000pc (Estimated Shipping Weight: 4 oz)
• Condition: (Subject to Availability)
  • SKU ______N - New, bulk, seller repackaged
  • SKU ______P - For parts or not working, pulled from working environment, current condition unknown. Not eligible for return or refund.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
  • Commonly used in precision devices where fine threaded screws are required such as some cameras, drones, laptop computers, medical devices, miniature robotics optical equipment, smart phone, ...
• Information for reference only, might changed without prior notice.
