For reference only, photos / specs may not reflect actual content.

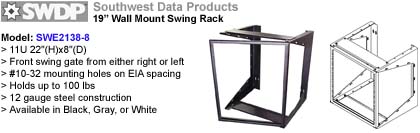

Wall Mount Swing Rack
 11U 22"(H)x8"(D)
for 19-inch Rack Mount Equipments
Rack Technologies SWE2138-8
RMS-xxx

Links:

Features:

  • 19" wide rack mounting units
  • 22" high x 8" depth
  • Front swing gate hinges from either right or left
  • Mounting holes tapped #10-32 on EIA standard spacing
  • Integrated strain relief tie off points allow for flexible cable management
  • High strength steel construction
  • Includes assembly hardware and (20) #10-32 rack screws
  • Holds up to 100 lbs
  • Rear mounting holes provided on 16" centers for standard stud mounting
  • 18-5/16" centers to allow units to be mounted on a 19" rack
  • Assembles in minutes
  • Choice of colors

Specifications

  • 19" wide rack mount tapped #10-32
  • 12 gauge steel construction
  • Colors available (Color code):
    • SWE2138-8BLK (Black)
    • SWE2138-8G     (ASA 61 Gray)
    • SWE2138-8W    (IBM White)
