For reference only, photos / specs may not reflect actual content.

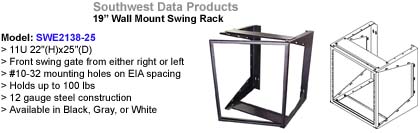

Wall Mount Swing Rack
 11U 22"(H)x25"(D)
for 19-inch Rack Mount Equipments
Rack Technologies SWE2138-25
RMS-xxx

Links:

Features:

  • 19" wide rack mounting units
  • 22" high x 25" depth
  • Front swing gate hinges from either right or left
  • Mounting holes tapped #10-32 on EIA standard spacing
  • Integrated strain relief tie off points allow for flexible cable management
  • High strength steel construction
  • Includes assembly hardware and (20) #10-32 rack screws
  • Holds up to 100 lbs
  • Rear mounting holes provided on 16" centers for standard stud mounting
  • 18-5/16" centers to allow units to be mounted on a 19" rack
  • Assembles in minutes
  • Choice of colors

Specifications

  • 19" wide rack mount tapped #10-32
  • 12 gauge steel construction
  • Colors available (Color code):
    • SWE2138-25BLK (Black)
    • SWE2138-25G     (ASA 61 Gray)
    • SWE2138-25W    (IBM White)
Wall Mount Swing Rack SWE2138 Series
 11U 22"(H)x25"(D) for 19-inch Rack Mount Equipments
SWDP Southwest Data Products
RMS-22/25-SWE2138


Wall Mount Swing Rack SWE2138 Series
 11U 22"(H)x25"(D) for 19-inch Rack Mount Equipments
SWDP Southwest Data Products
Part #: SWE2138-25
 > 19" wide rack mounting units
> 22" high x 25" depth
> Front swing gate hinges from either right or left
> Mounting holes tapped #10-32 on EIA standard spacing
> Integrated strain relief tie off points allow for flexible cable management
> High strength steel construction
> Includes assembly hardware and (20) #10-32 rack screws
> Holds up to 100 lbs
> Rear mounting holes provided on 16" centers for standard stud mounting
> 18-5/16" centers to allow units to be mounted on a 19" rack
> Assembles in minutes
> Choice of colors

Specifications
> 19" wide rack mount tapped #10-32
> 12 gauge steel construction
> Colors available (Color code):
   - SWE2138-25BLK (Black)
   - SWE2138-25G     (ASA 61 Gray)
   - SWE2138-25W    (IBM White)
