Wall Mount Rack Enclosure Cabinet

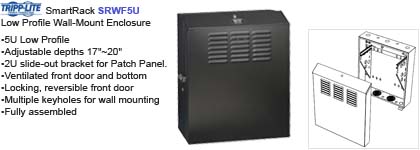

 Tripp Lite SmartRack SRWF5U
5U with 17"~20" usable Depth
 28.8" x 25.6" x 9.7" (HxWxD)
 RMW-TR26-xxx
Links:

Overview:

The SRWF5U 5U+2 Low-Profile Wall Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and bottom panels allow generous airflow to keep equipment operating safely. Adjustable horizontal rack rails securely mount 5U of 19" rackmount equipment with M6 or they can be reversed for securing with 12-24 threaded mounting holes. The patch panel mounting brackets provide space for up to 2U of patch panels with integral slide-out feature for easy cable access. Supports up to 150 lbs of equipment.

Features:

  • 5U low-profile wall-mounted enclosure

  • Adjustable horizontal mounting depths from 17" to 20" inches

  • Slide-out mounting brackets provides 2U of space for patch panel(s)

  • Ventilated front door and bottom panels for increased airflow

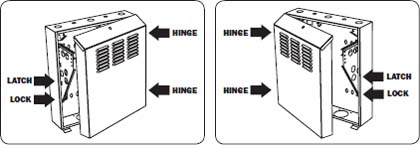

  • Locking, reversible front door

  • Multiple keyhole mounting slots for wall mounting

  • Fully assembled for quick installation

  • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance

Tripp Lite has a policy of continuous improvement. Product features are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Typical Applications

IT network environments, back office, and network closets with limited floor space and classrooms where equipment needs to be secure and out of the way of students.

Package Includes

  • SRWF5U Low-profile wall-mount enclosure

  • (12) M6 screws

  • (12) M6 cup washers

  • (12) 12-24 screws

  • (2) Keys

  • Owner's Manual

Specifications:

PHYSICAL
Installed whole system maximum rack depth (inches) 20
Installed whole system maximum rack depth (cm) 50.80
Installed whole system minimum rack depth (inches) 17
Installed whole system total rack space height (rack spaces) 5U
Shipping weight (lbs) 49
Shipping weight (kg) 22.1
Shipping Dimensions (HWD/in) 31.5" x 27.6" x 12"
Shipping Dimensions (HWD/cm) 80.01 x 70.10 x 30.48
Unit weight (lbs) 29
Unit weight (kg) 13
Unit Dimensions (cm) 73.15 x 65.02 x 24.64
Unit Dimensions (in) EXTERNAL DIMENSIONS: 28.8" x 25.6" x 9.7" (HWD)
Color Black
Weight Capacity - Stationary (lbs) 150
Installed whole system minimum rack depth (cm) 43.18
Weight Capacity - Stationary (kg) 68.0
CERTIFICATIONS
Certifications EIA-310-E
NOM (Mexico) Tested to NOM (Mexico)
Approvals UL60950; RoHS

† Tripp Lite uses primary and third-party agencies to test its products for compliance with standards.
