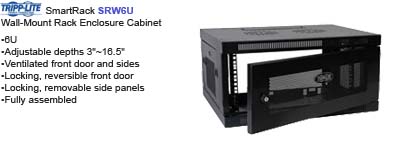

Wall Mount Rack Enclosure Cabinet
 Tripp Lite SmartRack SRW6U
6U with 3"~16.5" Usable Depth
 14.5" x 23.5" x 17.5" (HxWxD)
 RMW-TR06-xxx
Links:

Overview:

The SRW6U 6U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 6U of standard 19" rackmount equipment. Supports up to 140 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall.

Features:

  • 6U wall-mounted enclosure

  • Ideal for VoIP wiring closets and education venues that require security

  • Adjustable mounting depths up to 17" inches

  • Ventilated front door and side panels for increased airflow

  • Locking, reversible front door

  • Locking, removable side panels

  • Fully assembled for quick installation

  • PCI-Compliant: meets stringent physical security requirements

Tripp Lite has a policy of continuous improvement. Product features are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Specifications:

PHYSICAL
Installed whole system maximum rack depth (inches) 16.5
Installed whole system maximum rack depth (cm) 41.91
Installed whole system minimum rack depth (inches) 3
Installed whole system total rack space height (rack spaces) 6U
Shipping weight (lbs) 32
Shipping weight (kg) 14.5
Shipping Dimensions (HWD/in) 17.5" x 26.5" x 20.5"
Shipping Dimensions (HWD/cm) 44.45 x 67.31 x 52.07
Unit weight (lbs) 29
Unit weight (kg) 13
Unit Dimensions (cm) 36.83 x 59.69 x 44.45
Unit Dimensions (in) EXTERNAL DIMENSIONS: 14.5" x 23.5" x 17.5" (HWD)
Color Black
Weight Capacity - Stationary (lbs) 200
Installed whole system minimum rack depth (cm) 7.62
Weight Capacity - Stationary (kg) 90.7
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
Certifications EIA-310-E
NOM (Mexico) Tested to NOM (Mexico)
Approvals UL60950; RoHS

† Tripp Lite uses primary and third-party agencies to test its products for compliance with standards.
