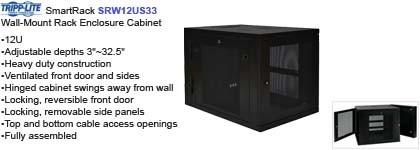

Wall Mount Rack Enclosure Cabinet
 Tripp Lite SmartRack SRW12US33
12U with 3"~32.5" Usable Depth
 25" x 23.63" x 33.5" (HxWxD)
 RMW-TR12-xxx
Links:

Overview:

The SRW12US33 12U Extended-Depth Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Extended depth to 33" accommodates most 1U servers and provides extra clearance for cable management. It has a heavy-duty steel construction to handle the added leverage. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

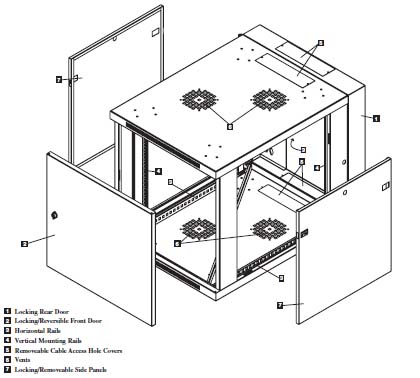

Features:

  • 12U wall-mounted enclosure

  • Adjustable mounting depths from 3" to 33" - accommodates most 1U servers and simplifies cable management

  • Ventilated front door and side panels for increased airflow

  • Hinged cabinet swings away from wall bracket for easy equipment and cable access

  • Heavy duty construction to handle added leverage

  • Locking, reversible front door

  • Locking, removable side panels

  • Top and bottom panel cable access openings

  • Fully assembled for quick installation

  • PCI-Compliant: meets stringent physical security requirements

Tripp Lite has a policy of continuous improvement. Product features are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Specifications:

PHYSICAL
Installed whole system maximum rack depth (inches) 32.5
Installed whole system maximum rack depth (cm) 82.55
Installed whole system minimum rack depth (inches) 3
Installed whole system total rack space height (rack spaces) 12U
Shipping weight (lbs) 120
Shipping weight (kg) 54.43
Shipping Dimensions (HWD/in) 37.8 x 26.9 x 25.6
Shipping Dimensions (HWD/cm) 96 x 68.32 x 65.02
Unit weight (lbs) 100
Unit weight (kg) 45.36
Unit Dimensions (cm) EXTERNAL DIMENSIONS: 63.5 x 60 x 85.09
Unit Dimensions (in) EXTERNAL DIMENSIONS: 25 x 23.63 x 33.5
Color Black
Weight Capacity - Stationary (lbs) 250
Installed whole system minimum rack depth (cm) 7.62
Weight Capacity - Stationary (kg) 113.4
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
NOM (Mexico) Tested to NOM (Mexico)
Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, IP250 Protection Rating, RoHS, UL 60950

† Tripp Lite uses primary and third-party agencies to test its products for compliance with standards.
