x	Part #	RMU	Depth	HxWxD		Shipping Weight
1.	Cube-iT+ # 11901-724	12 U	18"	24" x 24" x 18"	610 x 610 x 460 mm	75 lb	34.0 kg
2.	Cube-iT+ # 11900-724	12 U	24"	24" x 24" x 24"	610 x 610 x 610 mm	84 lb	38.1 kg
3.	Cube-iT+ # 12419-724	12 U	30"	24" x 24" x 30"	610 x 610 x 760 mm	94 lb	42.6 kg
4.	Cube-iT+ # 11901-736	18 U	18"	36" x 24" x 18"	910 x 610 x 460 mm	93 lb	42.2 kg
5.	Cube-iT+ # 11900-736	18 U	24"	36" x 24" x 24"	910 x 610 x 610 mm	105 lb	47.6 kg
6.	Cube-iT+ # 12419-736	18 U	30"	36" x 24" x 30"	910 x 610 x 760 mm	118 lb	53.5 kg
7.	Cube-iT+ # 11901-748	26 U	18"	48" x 24" x 18"	1220 x 610 x 460 mm	114 lb	51.7 kg
8.	Cube-iT+ # 11900-748	26 U	24"	48" x 24" x 24"	1220 x 610 x 610 mm	128 lb	58.1 kg
9.	Cube-iT+ # 12419-748	26 U	30"	48" x 24" x 30"	1220 x 610 x 760 mm	143 lb	64.9 kg

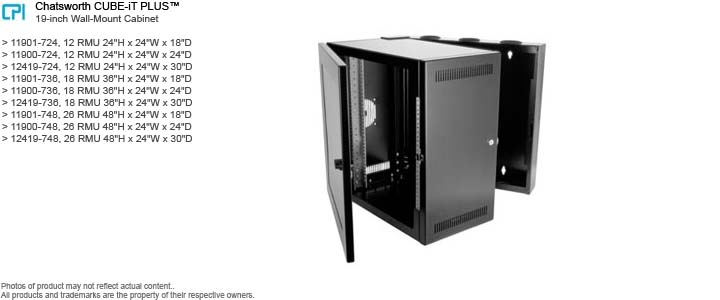

ENHANCED CUBE-iT PLUS™ DELIVERS HIGH PERFORMANCE AND HIGH VALUE

The newly enhanced CUBE-iT PLUS Wall-mount Cabinet from Chatsworth Products delivers industry-leading strength and rigidity with all of the quality and features you expect from CPI.

The CUBE-iT has been redesigned to deliver exceptional strength and rigidity in a swing out wall mount enclosure system. The new rear panel and hinge design contribute to an impressive 200 lb load rating. The patent-pending hinges facilitate quick and easy installation. Either left- or right-handed installations are possible with the same cabinet.

In addition to delivering customer-pleasing strength and security, the enhanced Cube-iT addresses safety concerns as well. The new front door design incorporates rounded edges and corners to improve safety in public access spaces.

Public access spaces also call for secure cable pathways. CPI delivers the smoothest interface for your conduit runs with four conduit knockouts sized for ½" or ¾" fittings and eight conduit knockouts sized for 2" or 2-½" fittings. All knockouts are placed 1-5/8" off of the wall in order to line up with conduit that is run on 1-5/8" strut channel. Large snap-in rubber grommets are also provided to fit the 2-½" knockouts for installations that do not employ conduit.

Another new feature of the enhanced CUBE-iT is a deeper rear panel with interior mounting locations for accessory brackets. The 45-degree brackets provide 3 RMU of space for mounting patch panels, cable managers, power strips, and other devices in the rear panel. This allows valuable rack mount space to be used for other equipment.

A locking front door and rear panel provide security. The swing-out cabinet body enables easy access to the rear of installed equipment.

The Cube-iT continues to be offered in three popular overall heights: 24", 36" and 48" and three depths: 18", 24" and 30". The cabinet ships fully assembled. Installation hardware is included.

Features:
􀂄 Stronger cabinet design reduces deflection --even under heavy loads.
􀂄 Patent-pending hinge design allows easy installation and superior strength and security.
􀂄 New rounded edges and rounded corners on front door ensure safety in public access spaces.
􀂄 New electrical conduit knockouts on top and bottom speed installation.
􀂄 New, deeper rear panel has internal mounting features for accessories such as patch panels, cable managers and power strips.
􀂄 Numerous cable tiedown points have been provided in the rear panel for Velcro cable straps.

Enhanced and High Performance:

• Front door is reversible.

• Side panels are vented top and bottom on both sides.

• Rear panel can be mounted so that cabinet swings to the right or left.

• Optional fan kit mounts to side panel.

• Optional power strip mounts inside the top, bottom or side of cabinet.

• Optional light can be mounted at bottom or top of the rear or front of the cabinet.

• Ships fully assembled with eight 1/4-10 x 2” cabinet mounting screws and 50 each #12-24 equipment mounting screws.

• One pair of mounting rails with EIA-310 compliant universal 5/8”-5/8”-1/2” alternating hole pattern are included with each cabinet and are fully adjustable front-to-rear.

• Additional mounting rails are available.

• Patent-pending.

• Hinge provides superior strength and facilitates quick and easy installation.

• Rear panel features four 1/2” or 3/4” and eight 2” or 2-1/2” knockouts for conduit.

• 6” x 6” pass through port for rear cable entry.

• 16” center-to-center mounting location aligns with wall studs.

• 5” deep rear panel provides extra space for mounting patch panels and other equipment.

• Locking front door and rear panel.

• Simple, one-person installation.

• Cube-iT PLUS features all steel construction with a 200 lb load rating.

• Heights:
     24” (12 RMU)
     36” (18 RMU)
     48” (26 RMU)

• Width:
     24” (19” EIA Mounting)

• Usable depths:
     18” depth offers 11.8” of useable
     24” depth offers 17.8” of useable
     30” depth offers 23.8” of useable
