Options:

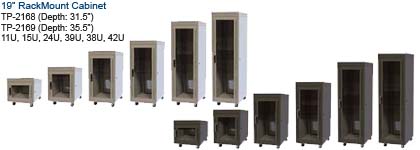

TP-2168 (Beige) 31.50" Depth with #10-32 Thread Holes

• TP-2168-42 #10-32 Holes HxWxD: 84x23.50x31.50", 290 lbs
• TP-2168-38 #10-32 Holes HxWxD: 76x23.50x31.50", 260 lbs
• TP-2168-29 #10-32 Holes HxWxD: 61x23.50x31.50", 225 lbs
• TP-2168-24 #10-32 Holes HxWxD: 52x23.50x31.50", 205 lbs
• TP-2168-15 #10-32 Holes HxWxD: 36x23.50x31.50", 160 lbs
• TP-2168-11 #10-32 Holes HxWxD: 30x23.50x31.50", 140 lbs

TP-2168B (Black) 31.50" Depth with #10-32 Thread Holes

• TP-2168B-42 #10-32 Holes HxWxD: 84x23.50x31.50", 290 lbs
• TP-2168B-38 #10-32 Holes HxWxD: 76x23.50x31.50", 260 lbs
• TP-2168B-29 #10-32 Holes HxWxD: 61x23.50x31.50", 225 lbs
• TP-2168B-24 #10-32 Holes HxWxD: 52x23.50x31.50", 205 lbs
• TP-2168B-15 #10-32 Holes HxWxD: 36x23.50x31.50", 160 lbs
• TP-2168B-11 #10-32 Holes HxWxD: 30x23.50x31.50", 140 lbs

TP-2168S (Beige) 31.50" Depth with 12x12mm Square Holes

• TP-2168-42 Square Holes HxWxD: 84x23.50x31.50", 290 lbs
• TP-2168-38 Square Holes HxWxD: 76x23.50x31.50", 260 lbs
• TP-2168-29 Square Holes HxWxD: 61x23.50x31.50", 225 lbs
• TP-2168-24 Square Holes HxWxD: 52x23.50x31.50", 205 lbs
• TP-2168-15 Square Holes HxWxD: 36x23.50x31.50", 160 lbs
• TP-2168-11 Square Holes HxWxD: 30x23.50x31.50", 140 lbs

TP-2168SB (Black) 31.50" Depth with 12x12mm Square Holes

• TP-2168B-42 Square Holes HxWxD: 84x23.50x31.50", 290 lbs
• TP-2168B-38 Square Holes HxWxD: 76x23.50x31.50", 260 lbs
• TP-2168B-29 Square Holes HxWxD: 61x23.50x31.50", 225 lbs
• TP-2168B-24 Square Holes HxWxD: 52x23.50x31.50", 205 lbs
• TP-2168B-15 Square Holes HxWxD: 36x23.50x31.50", 160 lbs
• TP-2168B-11 Square Holes HxWxD: 30x23.50x31.50", 140 lbs

TP-2169 (Beige) 35.50" Depth with #10-32 Thread Holes

• TP-2169-42 #10-32 Holes HxWxD: 84x23.50x35.50", 335 lbs
• TP-2169-38 #10-32 Holes HxWxD: 76x23.50x35.50", 305 lbs
• TP-2169-29 #10-32 Holes HxWxD: 61x23.50x35.50", 270 lbs
• TP-2169-24 #10-32 Holes HxWxD: 52x23.50x35.50", 250 lbs
• TP-2169-15 #10-32 Holes HxWxD: 36x23.50x35.50", 205 lbs
• TP-2169-11 #10-32 Holes HxWxD: 30x23.50x35.50", 185 lbs

TP-2169B (Black) 35.50" with #10-32 Thread Holes

• TP-2169B-42 #10-32 Holes HxWxD: 84x23.50x35.50", 335 lbs
• TP-2169B-38 #10-32 Holes HxWxD: 76x23.50x35.50", 305 lbs
• TP-2169B-29 #10-32 Holes HxWxD: 61x23.50x35.50", 270 lbs
• TP-2169B-24 #10-32 Holes HxWxD: 52x23.50x35.50", 250 lbs
• TP-2169B-15 #10-32 Holes HxWxD: 36x23.50x35.50", 205 lbs
• TP-2169B-11 #10-32 Holes HxWxD: 30x23.50x35.50", 185 lbs

TP-2169 Series 35.50" with 12x12mm Square Holes ( Beige or Black )

• TP-2169-42 Square Holes HxWxD: 84x23.50x35.50", 335 lbs
• TP-2169-38 Square Holes HxWxD: 76x23.50x35.50", 305 lbs
• TP-2169-29 Square Holes HxWxD: 61x23.50x35.50", 270 lbs
• TP-2169-24 Square Holes HxWxD: 52x23.50x35.50", 250 lbs
• TP-2169-15 Square Holes HxWxD: 36x23.50x35.50", 205 lbs
• TP-2169-11 Square Holes HxWxD: 30x23.50x35.50", 185 lbs

TP-2169B Series 35.50" with 12x12mm Square Holes ( Beige or Black )

• TP-2169B-42 Square Holes HxWxD: 84x23.50x35.50", 335 lbs
• TP-2169B-38 Square Holes HxWxD: 76x23.50x35.50", 305 lbs
• TP-2169B-29 Square Holes HxWxD: 61x23.50x35.50", 270 lbs
• TP-2169B-24 Square Holes HxWxD: 52x23.50x35.50", 250 lbs
• TP-2169B-15 Square Holes HxWxD: 36x23.50x35.50", 205 lbs
• TP-2169B-11 Square Holes HxWxD: 30x23.50x35.50", 185 lbs

Feature

• Good air ventilation
• You could increase to total 8 fans
• All doors design with the spring latch, easy remove, tool less
• Water or dust resist from top
• Easy assemble

Standard

• Die-cast heavy duty aluminum post frame
• Plexiglass front door W/lock
• Heavy duty sheet metal side and rear doors W/lock
• Top and bottom panels W/cable access hole
• Full size mounting strips front and rear
• 3 of 12cm fans (115CFM each) on top
• 4 heavy duty wheels
• 4 leveling feet
• 50 pcs M6 bolt screws W/washer
• Grounding wires

Specification:

• Overall Width x Depth: English 23.50" x 31.50", Metric 597 x 800 (mm)
• Material: Cabinet frame of extrude aluminum sections front and clear door, side panels, top, bottom plates and plinth of sheet metal
• Thermal Control: 3 x 12cm Fans on the cabinet top, 5 extra Fans (optional)
• Accessories: Die-cast heavy duty aluminum post frame, 4 heavy duty wheels, 4 leveling feet, Grounding wires
