Ship directly from manufacturer at buyer's cost. Freight to be advised.

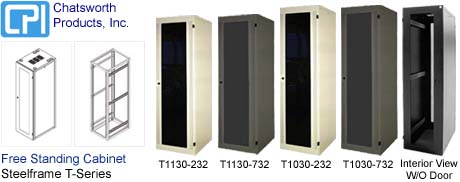

Product Family:

T1130-232 Computer White
> Height: 78.00" (78.90" with Feet, or 82.13" with Casters)
> Frame Vertical Opening 74.00"
> Usable RMU 42
> Width: Outside 23.96" (EIA 19.00")
> Front Frame Horizontal Opening 19.96"
> Depth: Door to Door 33.36", Frame 31.36", Usable 30.00"

T1130-732 Black
> Height: 78.00" (78.90" with Feet, or 82.13" with Casters)
> Frame Vertical Opening 74.00"
> Usable RMU 42
> Width: Outside 23.96" (EIA 19.00")
> Front Frame Horizontal Opening 19.96"
> Depth: Door to Door 33.36", Frame only 31.36", Usable 30.00"

T1030-232 Computer White
> Height: 84.00" (84.90" with Feet, or 88.13" with Casters)
> Frame Vertical Opening 80.00"
> Usable RMU 45
> Width: Outside 23.96" (EIA 19.00")
> Front Frame Horizontal Opening 19.96"
> Depth: Door to Door 33.36", Frame only 31.36", Usable 30.00"

T1030-732 Black
> Height: 84.00" (84.90" with Feet, or 88.13" with Casters)
> Frame Vertical Opening 80.00"
> Usable RMU 45
> Width: Outside 23.96" (EIA 19.00")
> Front Frame Horizontal Opening 19.96"
> Depth: Door to Door 33.36", Frame only 31.36", Usable 30.00"

T-Series Cabinet Part Numbers
T 1 0 3 0 - 2 3 2
    |  |   |  |    |   |  |--shipping: 2-(fully assembled)
    |  |   |  |    |   |
    |  |   |  |    |   |--door:1-(Solid Plexiglass Front / Solid Metal Back)
    |  |   |  |    |               3-(Vented Plexiglass Front / Perf Metal Back)
    |  |   |  |    |               4-(Perforated Metal Front / Perf Metal Back)
    |  |   |  |    |
    |  |   |  |    |--color: 1-(gray)
    |  |   |  |                 2-(computer white)
    |  |   |  |                 7-(black)
    |  |   |  |
    |  |   |  |--mounting rails & style:
    |  |   |          0-(tapped 12-24 rails with top & side panels)
    |  |   |          1-(tapped 12-24 rails with top panel)
    |  |   |          3-(square punched rails with top & side panels)
    |  |   |          4-(square punched rails with top panel)
    |  |   |
    |  |   |--depth: 6-(22.6" usable, 25.96" outside depth)
    |  |                 3-(30.0" usable, 33.36" outside depth)
    |  |                 5-(36.0" usable, 39.36" outside depth)
    |  |
    |  |--height: 0-(45U, 84.90" outside height)
    |                 1-(42U, 78.90" outside height)
    |
    |--width: 1-(19" EIA, 23.96" outside width)
                  2-(23" EIA, 27.31" outside width)

Steelframe T-Series Cabinet

Chatsworth Products, Inc., the industry leader in providing solutions for organizing, storing and securing electronic components, now offers the
new SteelFrame T-Series Cabinet for applications requiring a simple and cost-effective solution for housing electronic and network equipment. This high-value, affordable steel cabinet solution delivers traditional CPI quality in design, construction, materials and workmanship.

The SteelFrame T-Series Cabinet is an ideal storage solution for EIA 19" rack-mountable equipment and is offered in two widths: 24" and 27.3". Three cabinet depths are offered: 22.6", 30", and 36", as well as two height options: 78" and 84". The T-Series Cabinet is available as a fully configured cabinet with or without side panels, or a frame-only cabinet with no top panel, side panels, or doors. Fully adjustable EIA-310-D compliant vertical mounting rails accommodate depth-variable installation of 19" equipment and feature #12-24 tapped holes or square-punched holes to accept cage nut hardware. Additional standard CPI rails for special HP®, IBM®, or Sun® equipment can also be used with the T-Series cabinet.

SteelFrame T-Series cabinets of the same height and depth can be bayed using the provided multi-bay attachment hardware. Lockable, easy-to-remove side panels facilitate baying. Standard quick-release doors make it simple to reverse door swing. Three door options are availalbe -- solid smoked plexiglass front door and solid metal rear door; perforated metal front and rear door; or vented plexiglass front and perforated metal rear
door. Perforated doors meet ventilation requirements of most server OEMs for third party racks.

CPI's exceptional vertical cable management solutions have been included in the design of this affordable cabinet. The 24" wide T1 cabinet features streamlined cable management for equipment mounting applications while the slightly wider 27.3" T2 cabinet is ideal for applications requiring additional cable management.

A full range of accessories is available to complement and integrate with the SteelFrame T-Series Cabinet System including fixed shelves, sliding shelves, caster set, grounding kit, fan kit, power strips, and horizontal cable management. For more information, please contact your authorized CPI Distributor or CPI Customer Service Representative, or go to www.chatsworth.com

Features:

* Steel construction provides a static load rating of 2,000 lb.
* Lockable, reversible doors provide security and flexibility.
* Cabinets feature lockable, removable side panels for easy equipment access and baying of fully-loaded cabinets.
* Cable management is simplified with the included Vertical Cabling Ring Section.
* Vented top panel with six edge-protected cable access ports provides cabling access wherever needed.
* Ships fully assembled for easy installation.
* Organizing. Storing. Securing.
* Lockable, easy-to-remove side panels
* Adjustable (front to rear) vertical mounting rails allow use as a standard four-post cabinet or two channel rack
* Available in three depths, two heights, and two widths
* Bays to other T-Series cabinets of equal height and depth
* Rack mounting rails with Universal EIA 5/8”-5/8”-1/2” alternating hole pattern
* Adjustable leveling feet provide stability
* Open base allows for optional ventilation
* Static load rating of 2,000 lb
* Ships fully assembled
* Optional fan kit provides 300 CFM of air flow through cabinet
* High-strength steel construction provides strength and durability
* Accommodates power strips (sold separately) when requirements call for inside power distribution
* Extruded horizontal mounting rail provides support for mounting rails and cabling ring section
* Inch markers on horizontal mounting rails ensure proper alignment of vertical mounting rails
* 180 degree reversible doors open from the right or left
* “Quick Release” attachment for front and rear doors allows for easy equipment installation
* 19” Standard EIA Rack width
* Nine different cabinet and frame options available
* Fully adjustable side mounted cabling ring sections provide unsurpassed vertical cable management without protruding into usable space

Hardware Bags:

CPI racks and cabinets ship from the factory with a quantity of mounting screws in the product's hardware kit. Cabinets that ship with tapped rails include (50) #12-24 pilot-point screws. Cabinets that ship with square-punched rails include (25) #12-24 cage nuts and screws plus (16) M6 cage nuts and screws. Additional hardware may be required if a large number of panel mount devices and accessories are installed.

For Tapped Rails:
40605-001 Bag of (50) #12-24 pilot point screws, silver
40605-004 Bag of (1000) #12-24 pilot point screws, silver
40605-005 Bag of (50) #12-24 pilot point screws, black
40605-006 Bag of (1000) #12-24 pilot point screws, black

For Square-Punched Rails:
12637-001 Bag of (25) M6 cage nuts and screws, gold
12638-001 Bag of (25) #10-32 cage nuts and screws, silver
12639-001 Bag of (25) #12-24 cage nuts and screws, black

T-Series Cabinet Includes:
1 Four-Post Frame
4 Vertical Mounting Rails
Removable Side Panels (Set)
1 "Quick-Release" Front Door
1 "Quick-Release" Back Door
1 Top Panel with Slotted Vents & Six Cable Access Ports
Leveling Feet (Set of four)
1 Multi-Bay Attachment Hardware Kit
1 Bag 50 #12-24 Screws (with tapped rails)
1 Combo Kit of #12-24 and M6 Cage Nuts and Screws (with Square-punched rails)
1 Vertical Cable Manager (Installed)

Cabinet and Frame Specifications:
Universal EIA Alternating Hole Pattern: 5/8"-5/8"-1/2"
Construction: Manufactured from cold rolled steel quality
engineered for maximum strength and functionality
Static Load Rating Without Casters: 2,000 lb
Shipping Weight: Cabinet 190 lb to 316 lb
Frame 122 lb to 152 lb

Dimensions of the T-Series Cabinet:

Height Specifications

78" Cabinet
Height (Without Casters or Feet) 78.00"
Height (With Leveling Feet) 78.90"
Height (With Casters) 82.13"
Frame Vertical Opening 74.00"
Usable RMU 42

84" Cabinet
Height (Without Casters or Feet) 84.00"
Height (With Leveling Feet) 84.90"
Height (With Casters) 88.13"
Frame Vertical Opening 80.00"
Usable RMU 45

Width Specifications

T1 Server Cabinet
Outside Width 23.96"
EIA Width 19.00"
Front Frame Horizontal Opening 19.96"

T2 Cable Management Cabinet
Outside Width 27.31"
EIA Width 19.00"
Front Frame Horizontal Opening 19.96"

Depth Specifications

23" Deep Cabinet
Usable Depth 22.60"
Outside Dimension (Frame Only) 23.96"
Outside Depth (Door to Door) 25.96"

30" Deep Cabinet
Usable Depth 30.00"
Outside Dimension (Frame Only) 31.36"
Outside Depth (Door to Door) 33.36"

36" Deep Cabinet
Usable Depth 36.00"
Outside Dimension (Frame Only) 37.36"
Outside Depth (Door to Door) 39.36"
