TrippLite 4-Post Open Frame Rack

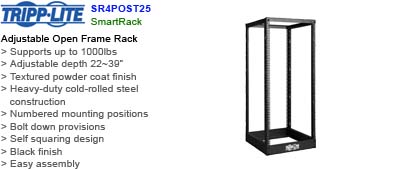

Tripp Lite SmarkRack SR4POST25
for 19-inch Rack Mount Equipments
Adjustable Depth 22~39" with Square Punched Rails
RM4-TR-SR4POST25

Link(s):

SmartRack 4-post open frame racks are ideal for cost conscious 19 inch rack mount applications. Multiple units can be bolted together side by side.

Key Buying Points:

  • Supports 1000lbs of rackmount equipment
  • Adjustable mounting depth (22 to 39 inches )
  • Textured powder coat finish
  • Heavy-duty cold-rolled steel construction
  • Numbered mounting positions
  • Bolt down provisions
  • Self squaring design
  • Black finish
  • Easy assembly

Package Includes:

  • SR4POST25
  • Installation hardware
  • 32x pieces of M6 cage nuts, screws, and washers for equipment mounting
  • Cable management hooks
  • Owner's manual with warranty information

Specifications:

PHYSICAL
Installed whole system maximum rack depth (inches) 39.3
Installed whole system maximum rack depth (cm) 99.82
Installed whole system minimum rack depth (inches) 22
Installed whole system total rack space height (rack spaces) 25U
Shipping weight (lbs) 46
Shipping weight (kg) 20.7
Unit Dimensions (HWD/cm) 125.2 x 51.3 x 55.9~99.8 (depth adjustable)
Shipping Dimensions (HWD/in) 4.13 x 5.71 x 56.5
Shipping Dimensions (HWD/cm) 10.5 x 14.5 x 143.51
Unit weight (lbs) 45
Unit weight (kg) 20.25
Unit Dimensions (cm) 125.2 x 51.31 x 55.88~99.1 (depth adjustable)
Unit Dimensions (in) 49.3 x 20.2 x 22~39.3 (depth adjustable)
Color Black
Weight Capacity - Stationary (lbs) 1000
Installed whole system minimum rack depth (cm) 55.88
Weight Capacity - Stationary (kg) 453.6

SPECIAL FEATURES
Grounding lug Included screws, nuts, and washers secure user-supplied grounding wire to Front or Back frames

CERTIFICATIONS
NOM (Mexico) Tested to NOM (Mexico)
Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
